Flexible couplings by KTR Systems :

ROTEX^ⓡ torsionally flexble jaw couplings

•

  0 - 35,000 Nm

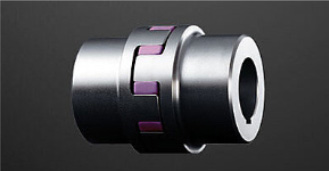

  ROTEX^ⓡ Standard

  The Original - renowned industrial standard

•

  0 - 4,500 Nm

  ROTEX^ⓡ for taper clamping sleeve

  Can be combined with taper clamping sleeves

•

  0 - 13,400 Nm

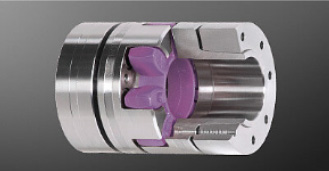

  ROTEX^ⓡ clamping ring hubs

  For-frictionally engaged shaft-hub-connections

POLY-NORM^ⓡ torsionally flexble, fail-safe shaft couplings

•

  0 - 67,000 Nm

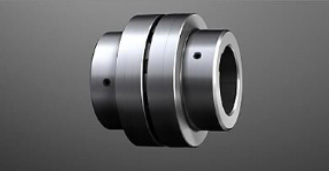

  POLY-NOTM^ⓡ AR

  Low-priced standard version

•

  0 - 67,000 Nm

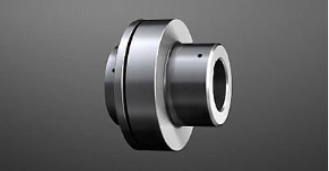

  POLY-NOTM^ⓡ ADR

  Elastomer ring can replaced when installed

•

  0 - 13,400 Nm

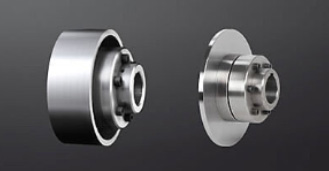

  POLY-NOTM^ⓡ ADR-BTA

  Shaft coupling with brake drum

POLY torsionally flexble, shearshear type shaft couplings

•

  0 - 820 Nm

  POLY PKA

  Drop-oup center design coupling for large shaft distances

•

  0 - 6,100 Nm

  POLY PKD

  Three-part, compact

•

  0 - 6,100 Nm

  POLY PKZ

  Low-priced standard wersion, two-part compact

REVOLEX^ⓡ flexible pin & bush couplings

•

  9,400 - 430,000 Nm

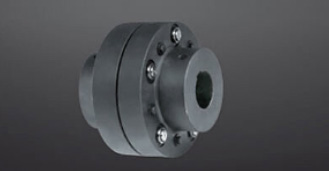

  REVOLEX^ⓡ KX-D made of cast iron

  Low-cost standard type

•

  4,300 - 1,350,000 Nm

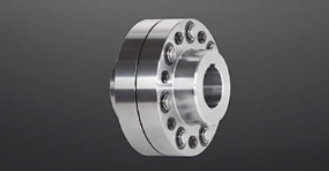

  REVOLEX^ⓡ KX-D made of steel

  For customized special dimensions

•

  0 - 6,100 Nm

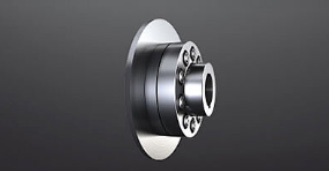

  REVOLEX^ⓡ KX-D SB

  Flexible pin & bush coupling with brake disk REVOLEX^ⓡ KX-D SB | KTR
