모든 산업용 기어 박스 브랜드를 위한 빠르고 안정적인 서비스 지원

당사의 수리 서비스는 기능 유지 보수에서 성능 향상에 이르기까지 전체 제품 라이프 사이클에 걸친 모든 서비스 작업으로 구성됩니다.
당사의 서비스 전문가는 제조업체 수준에서 구성 요소를 분석, 수리, 유지 관리 및 최적화하여 값비싼 가동 중지 시간을 피할 수 있습니다.

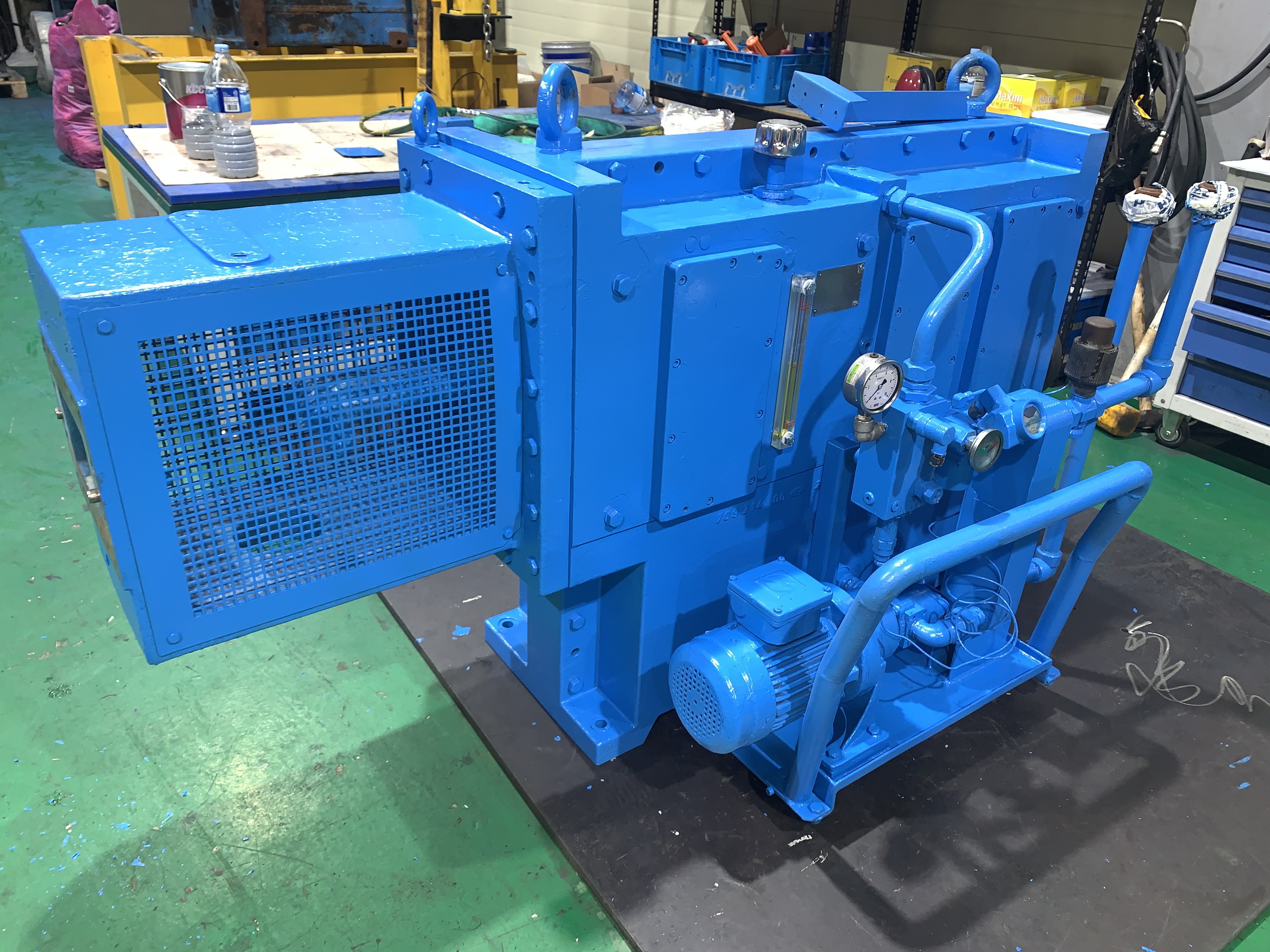

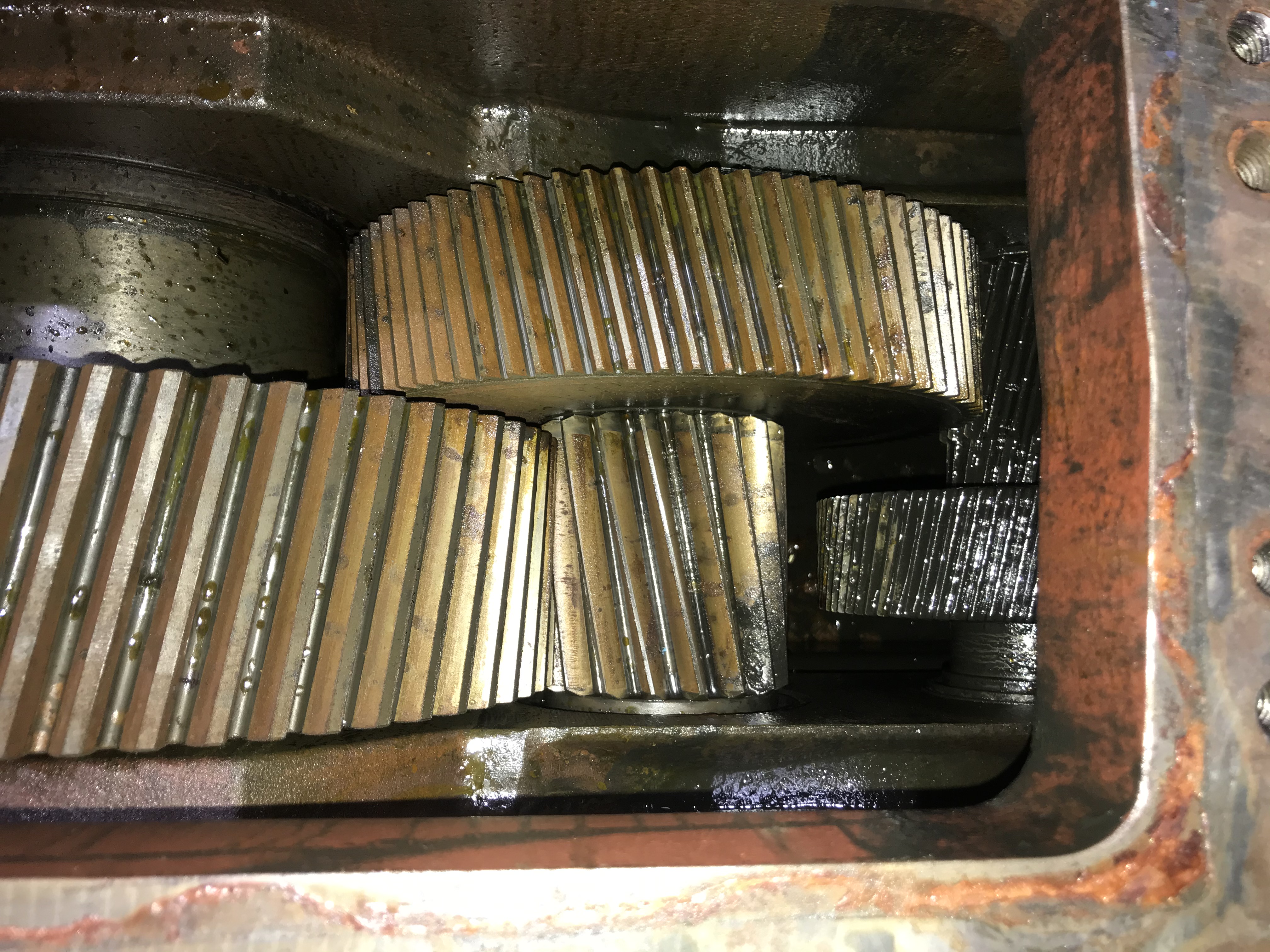

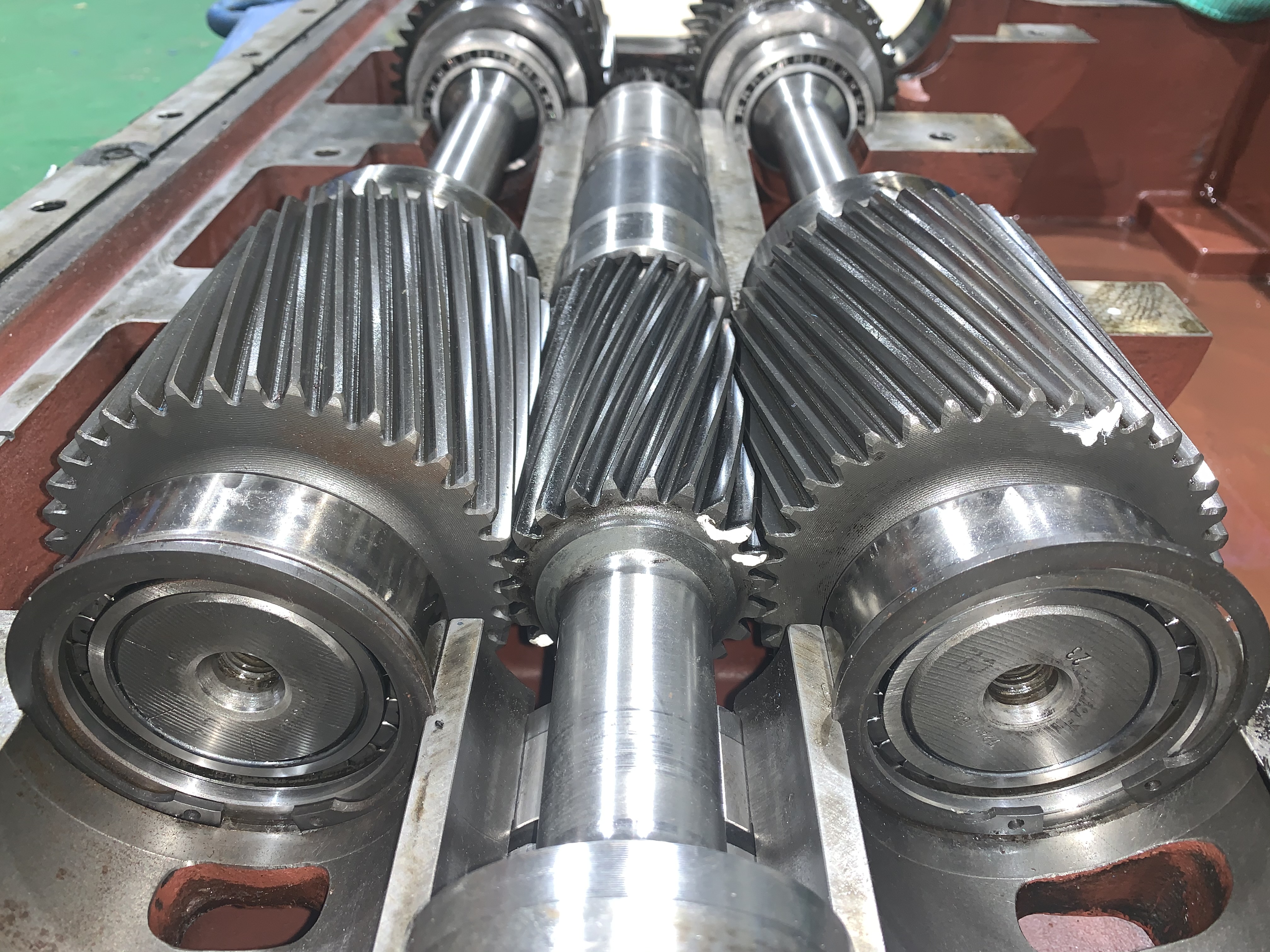

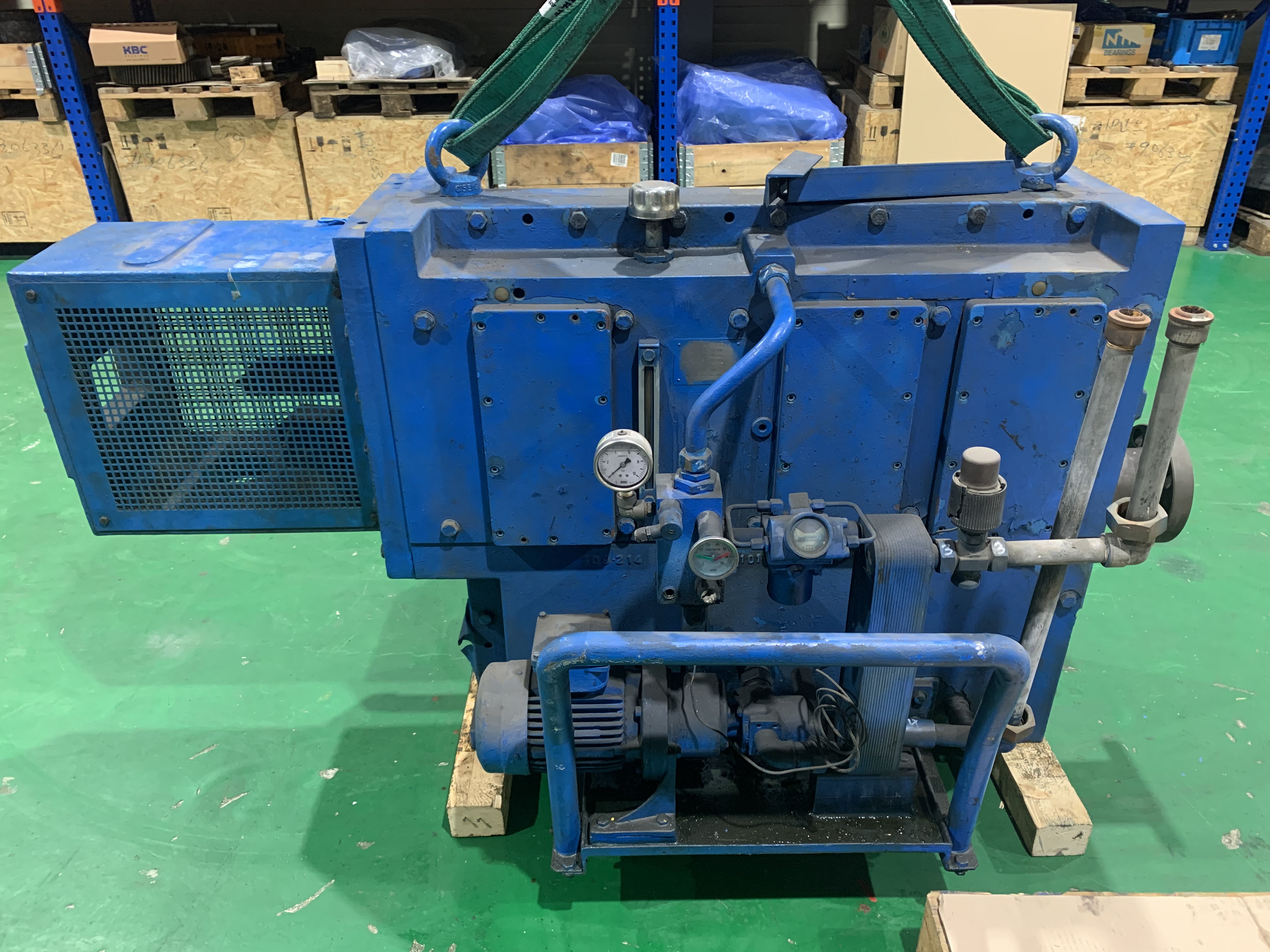

Double-Screw Extruder gear box Overhaul

Maker
FLENDER (Germany)

Type / Size
58FC 2275

Weight
2300 kg

Rated power
429kW

Rated Torque
2 x 2275 Nm

Gearbox design
helical gear units for double-screw extruders with parallel shafts

Key features
- Replace Bearing / Shaft seal
- Check oil supply system

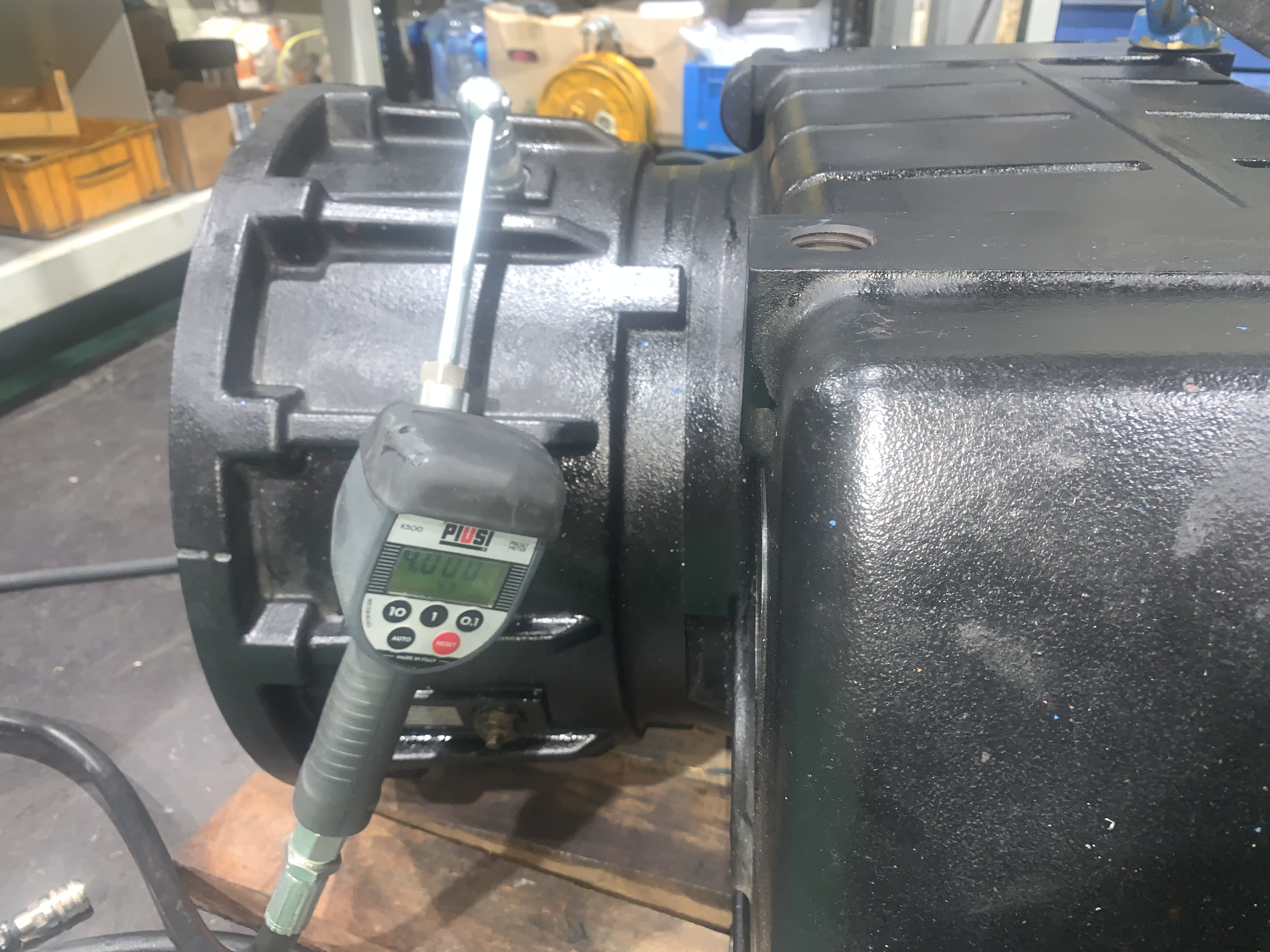

- Filling with Oil
- Post-repair test
- Repairs to paint finish

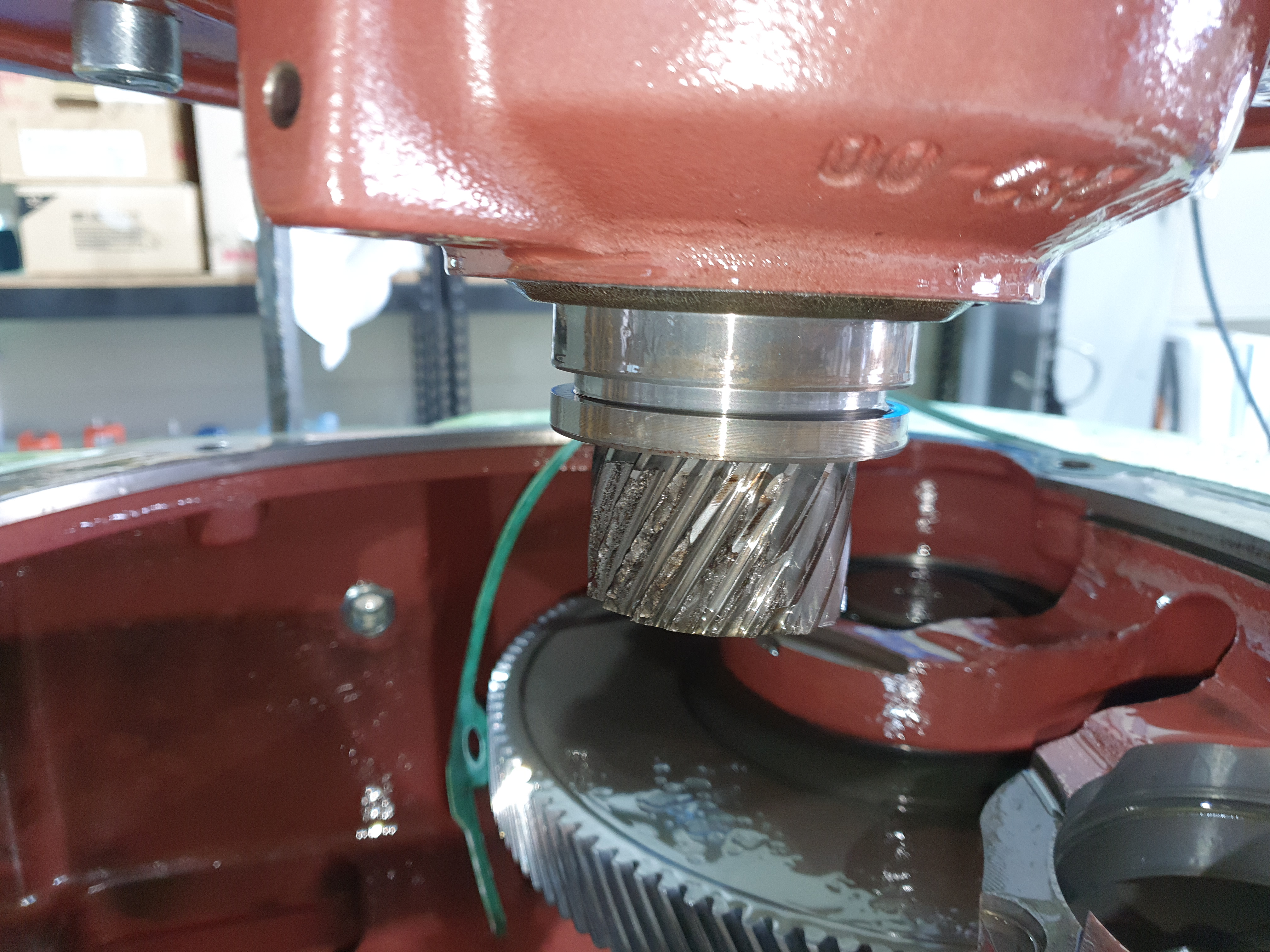

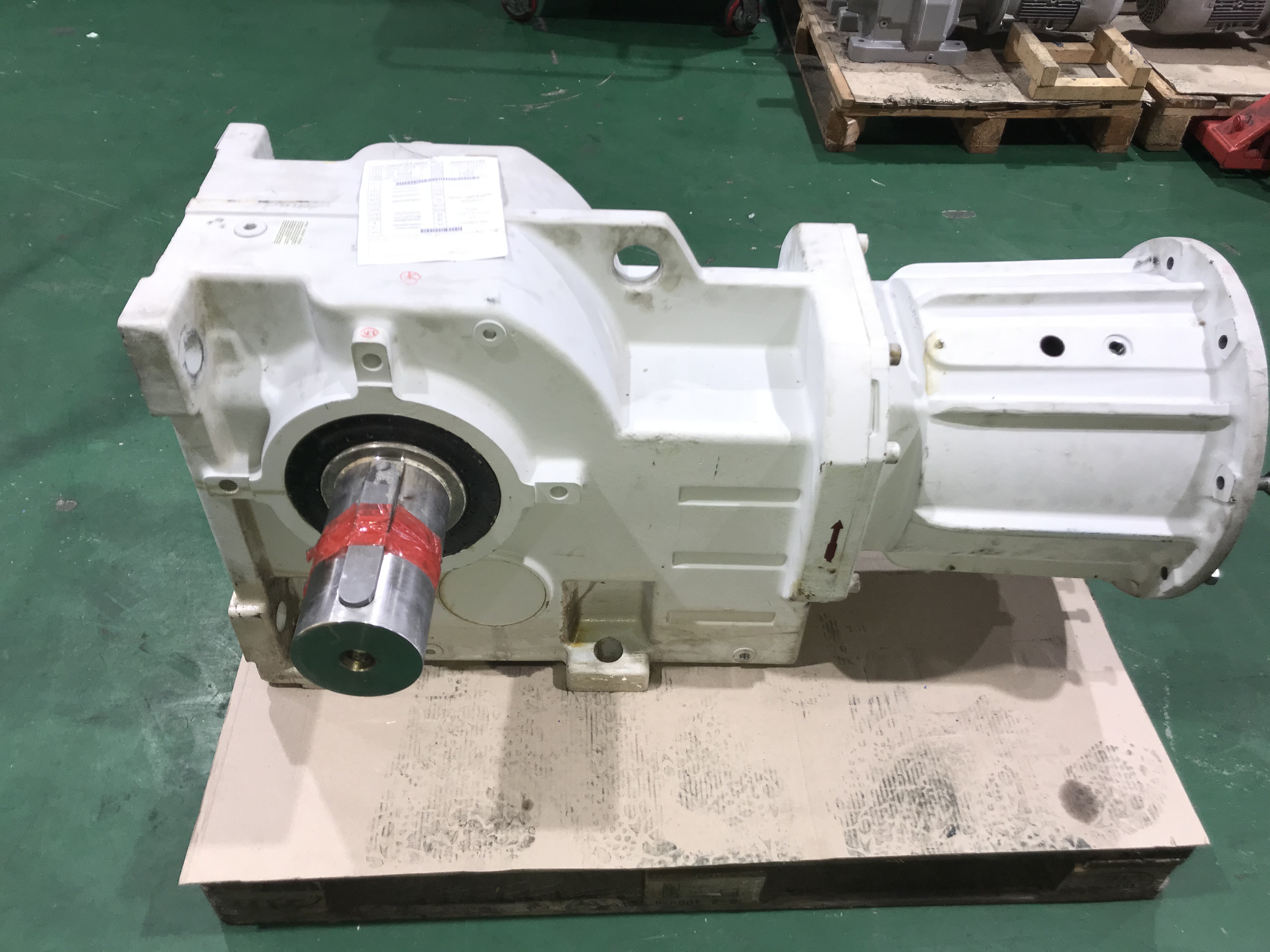

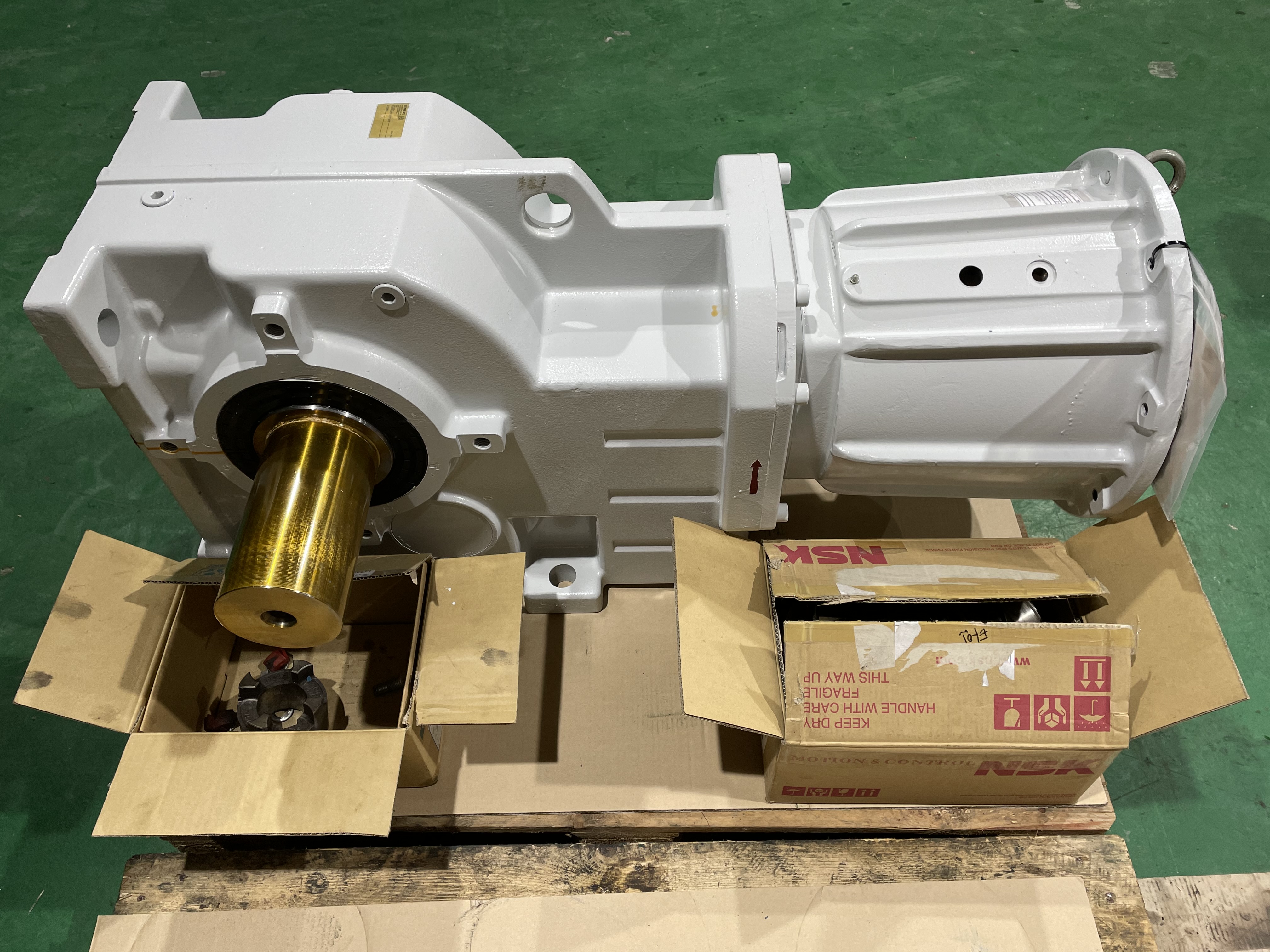

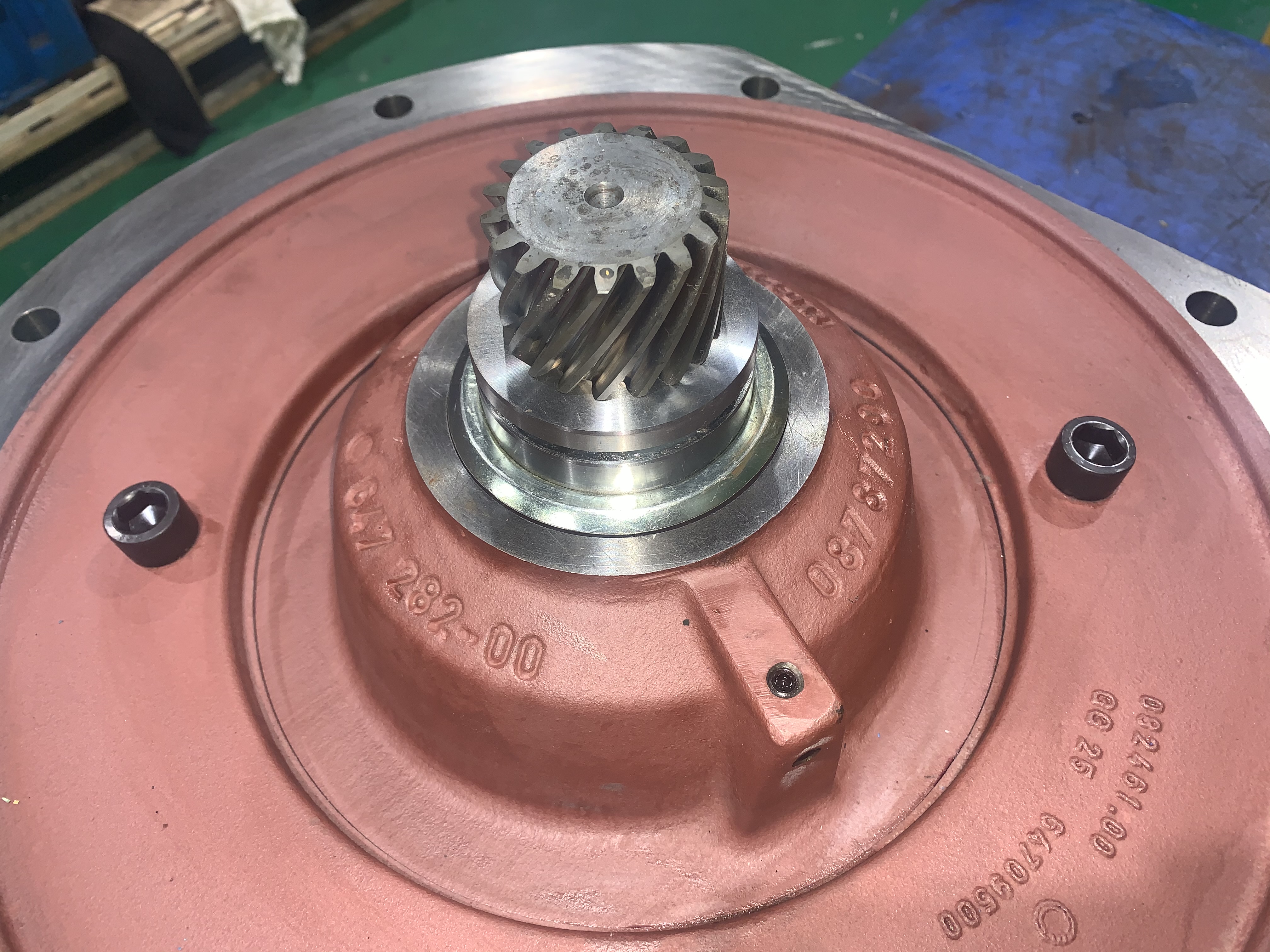

SIEMENS MOTOX K168-K2-225 Overhaul

Maker
SIEMENS (Germany)

Type / Size
K168-K2-225

Weight
650 kg

Rated power
45kW

Rated Torque
13500 Nm

Gearbox design
Helical bevel gear unit with IEC Motor adapter

Key features
- Replace Bearing / Shaft seal
- Replace Motor pinion and Helical gear wheel
- Filling with Oil
- Post-repair test
- Repairs to paint finish

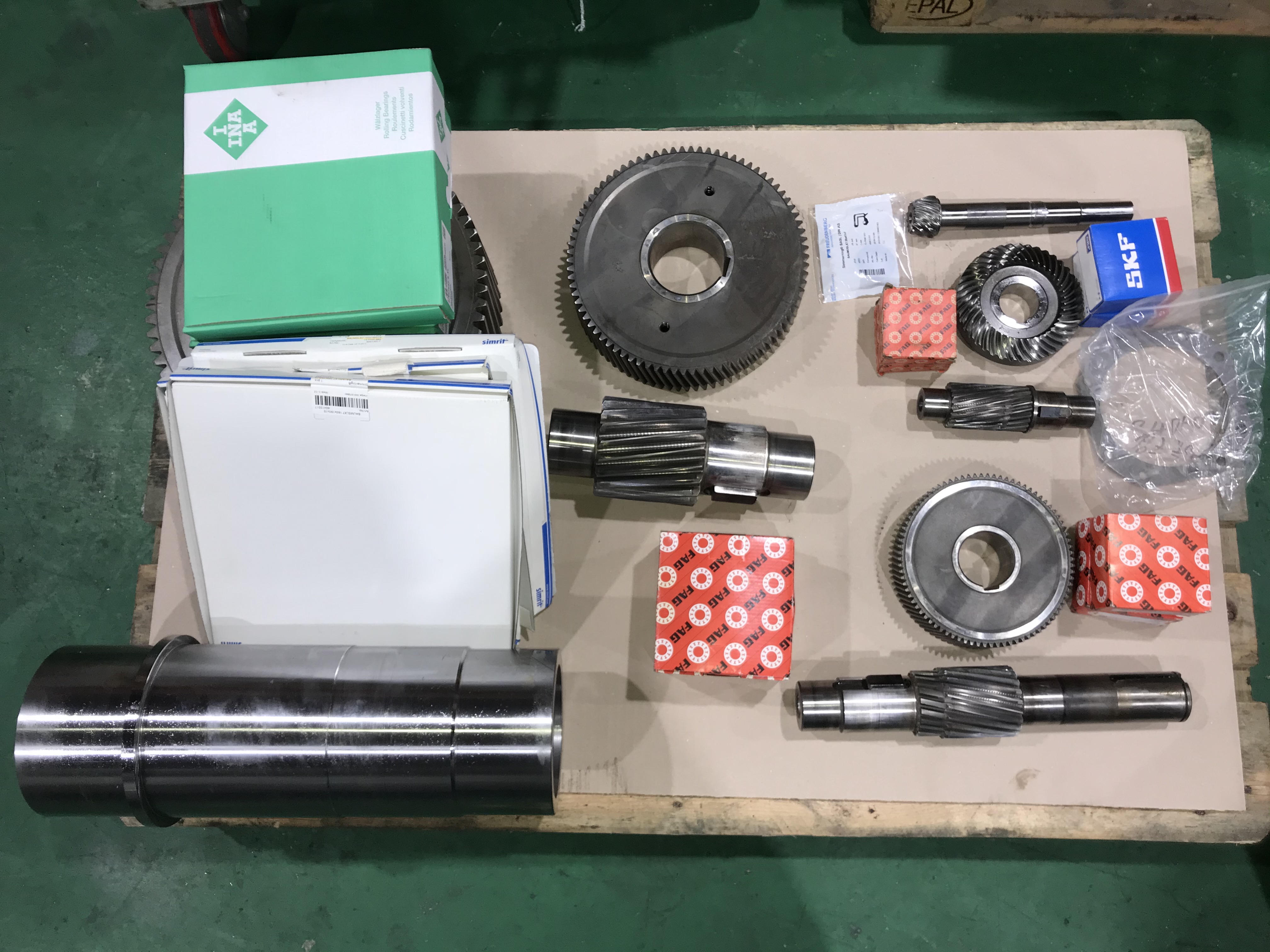

SIEMENS MOTOX FZAF188B-K4-280 Overhaul

Maker
SIEMENS (Germany)

Type / Size
FZAF188B-K4-280 Weight : 900 kg

Weight
900 kg

Rated power
75kW

Rated Torque
18870 Nm

Gearbox design
Parallel shaft gear unit with IEC motor adapter

Key features
- Replace Bearing / Shaft seal
- Replace motor pinion and Helical gear wheel
- Replace Hollow output shaft
- Filling with Oil
- Post-repair test
- Repairs to paint finish

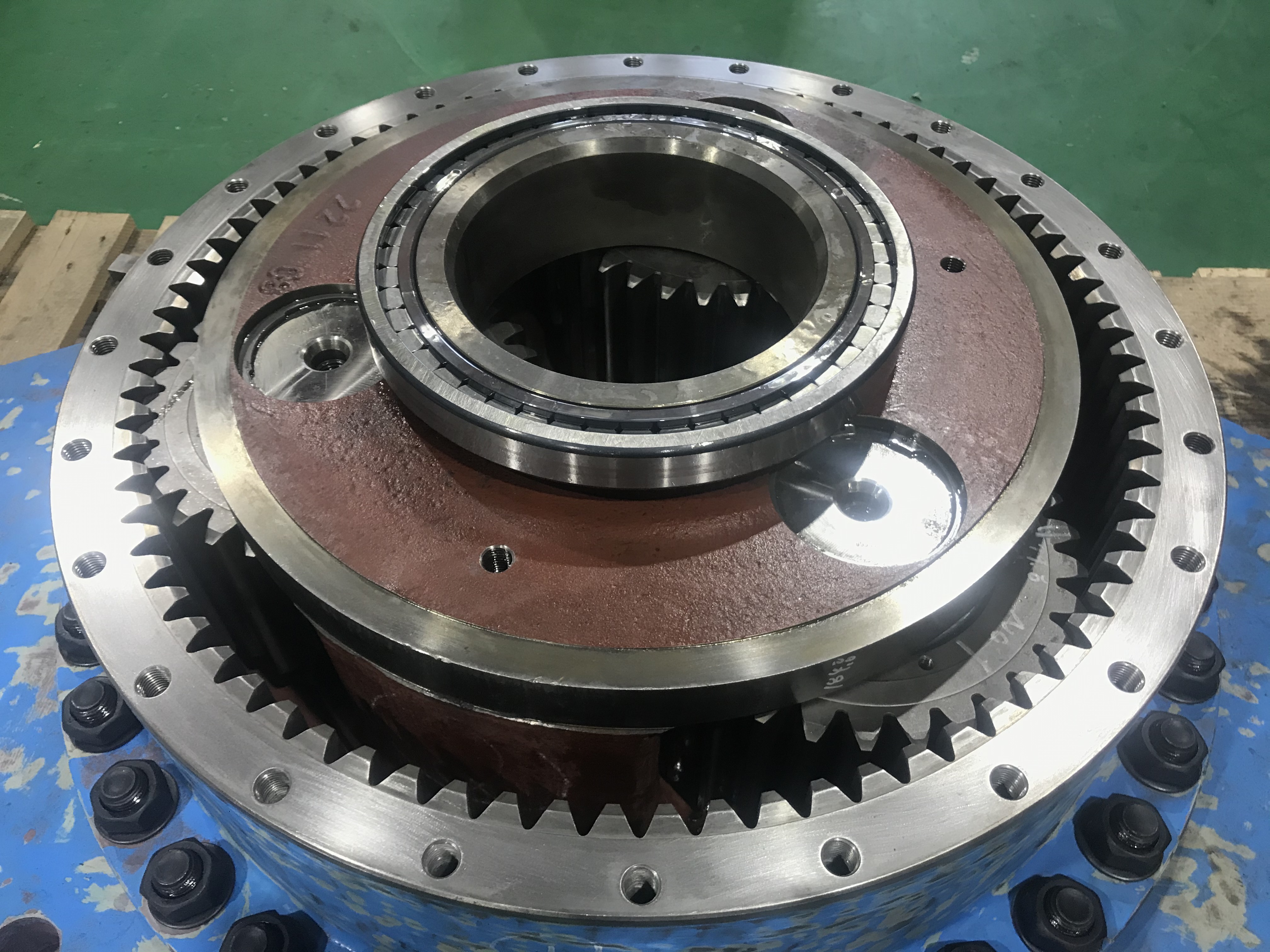

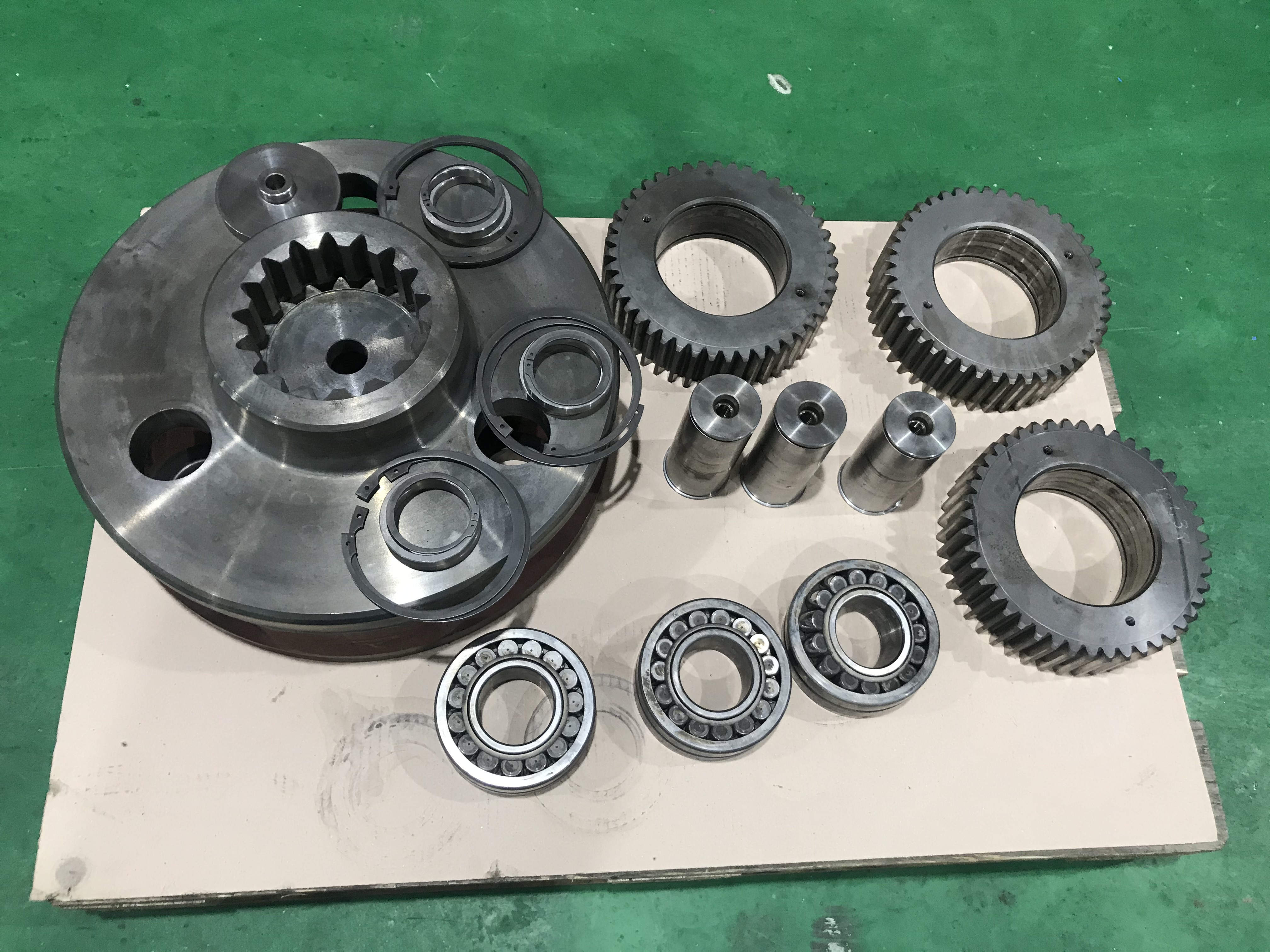

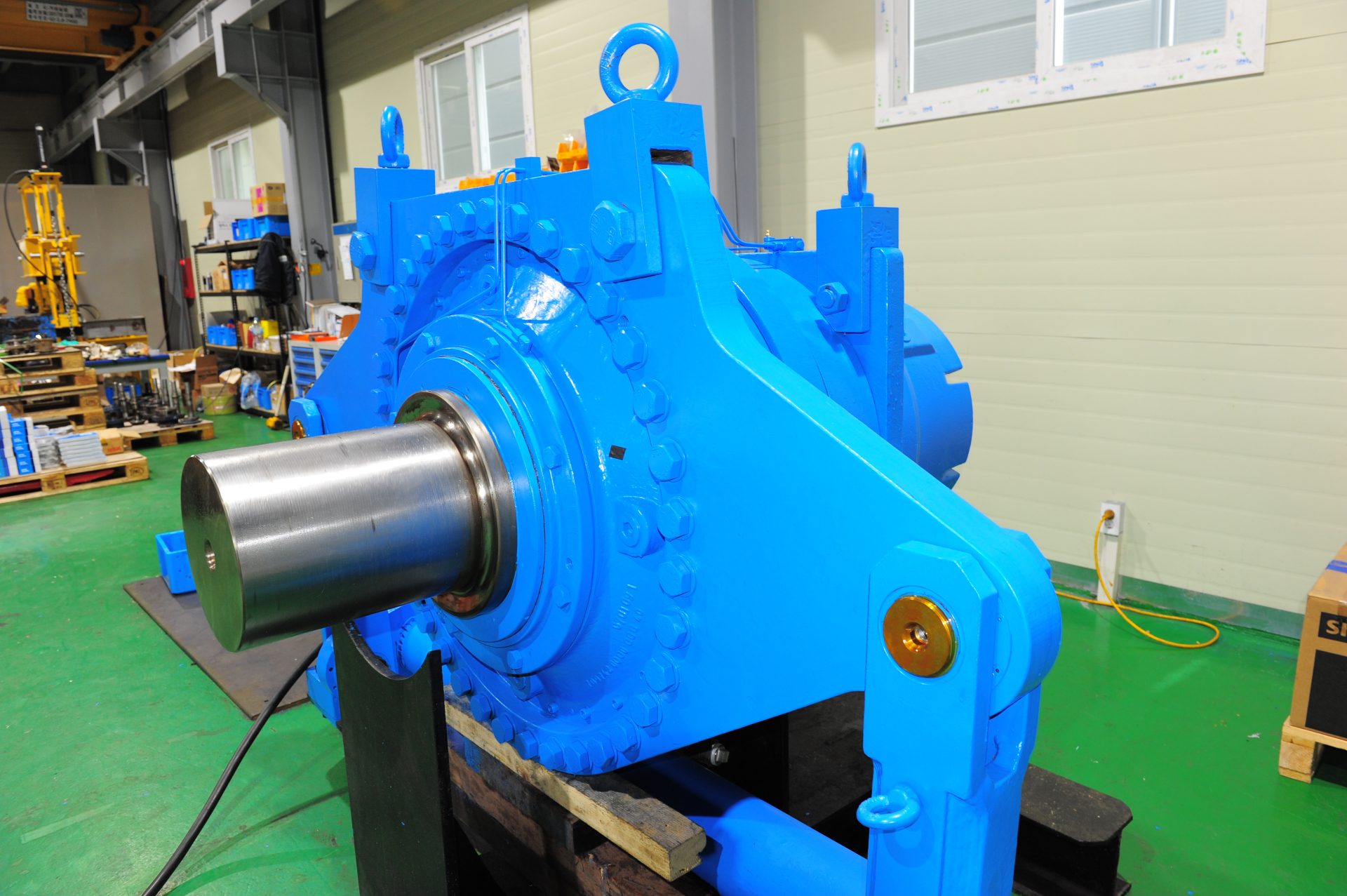

FLENDER P2KB19 / ZAPEX 700-18 Overhaul

Maker
FLENDER (Germany)

Type / Size
P2KB19 / Flange Coupling ZAPEX 700-18

Weight
4230 kg

Rated power
132kW

Rated Torque
141,347 Nm

Gearbox design
Planetary gear unit with Bevel-helical gear stage

Flange Coupling
Oil pressure for hydraulic hub removal min1300~max.1800 bar

Key features
- Replace Bearing / Shaft seal
- Filling with Oil
- Post-repair test
- Repairs to paint finish

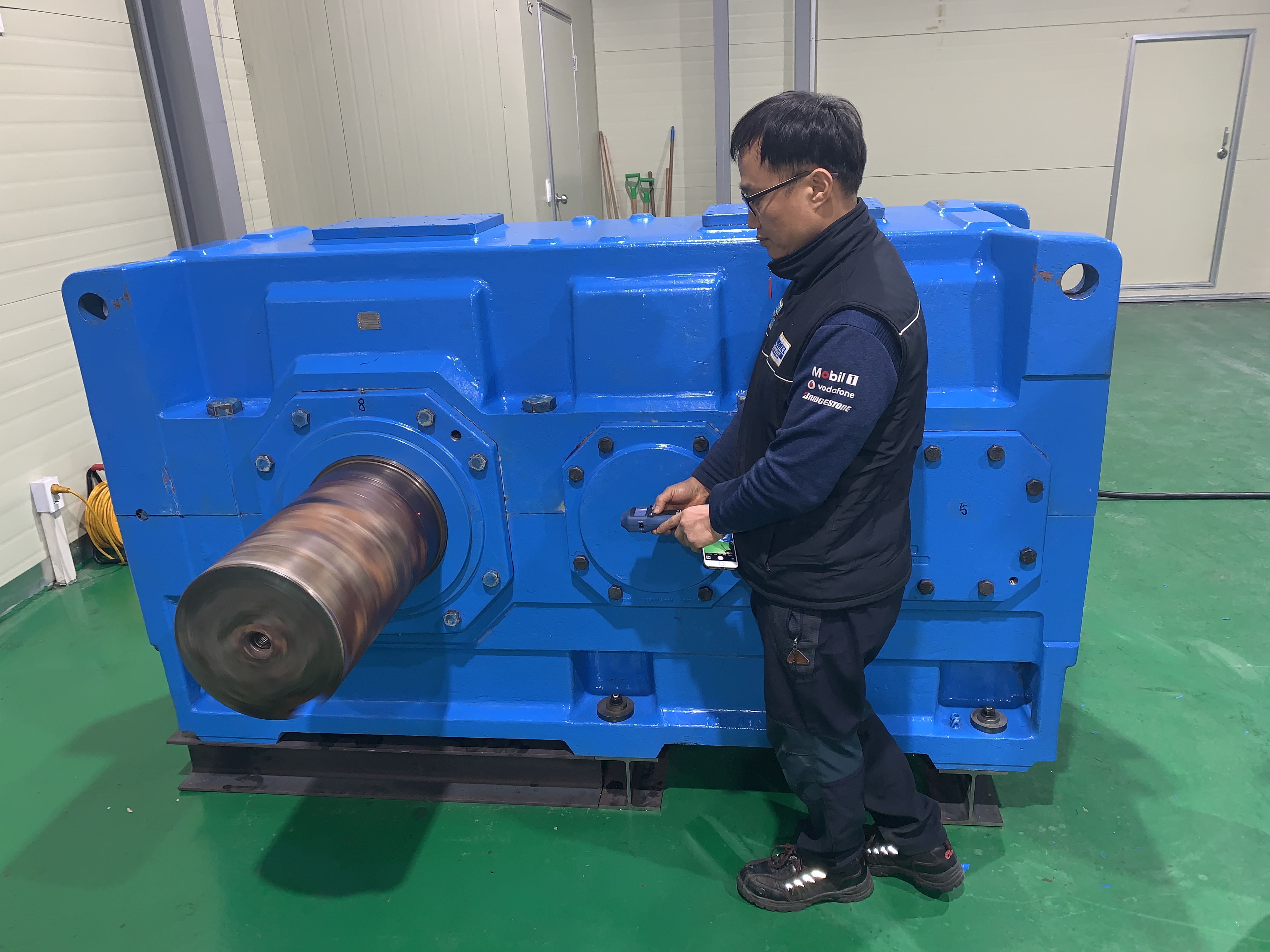

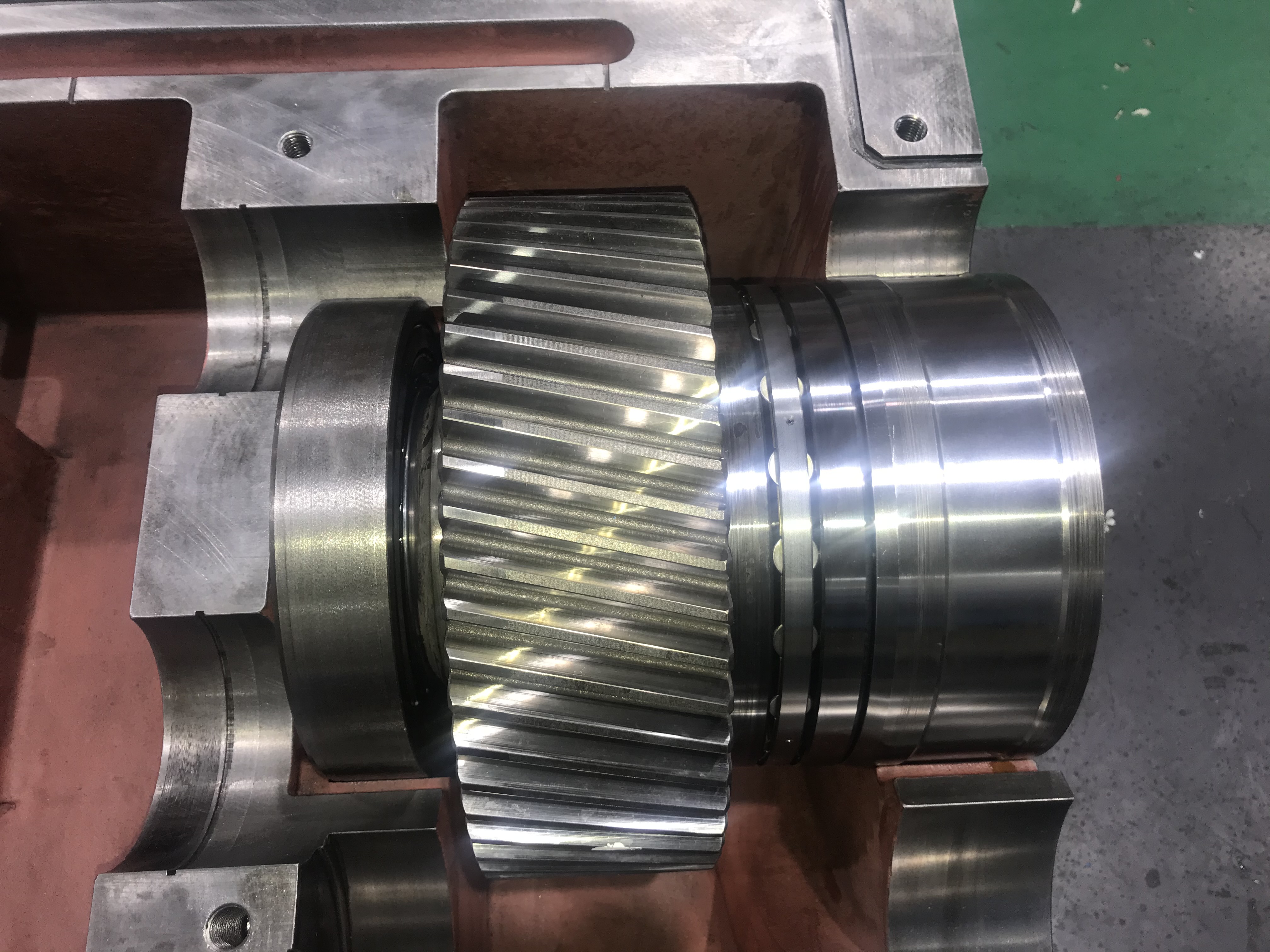

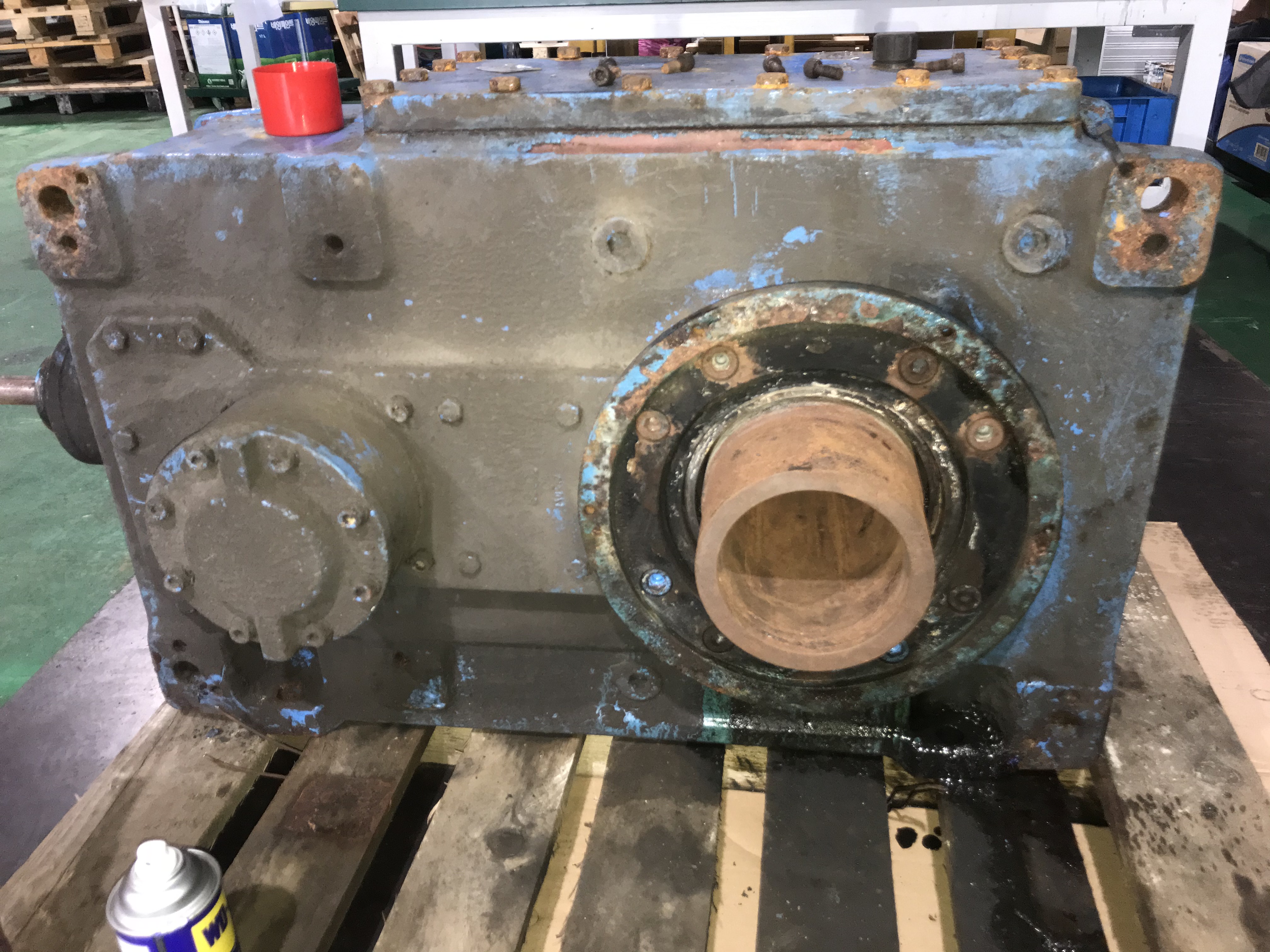

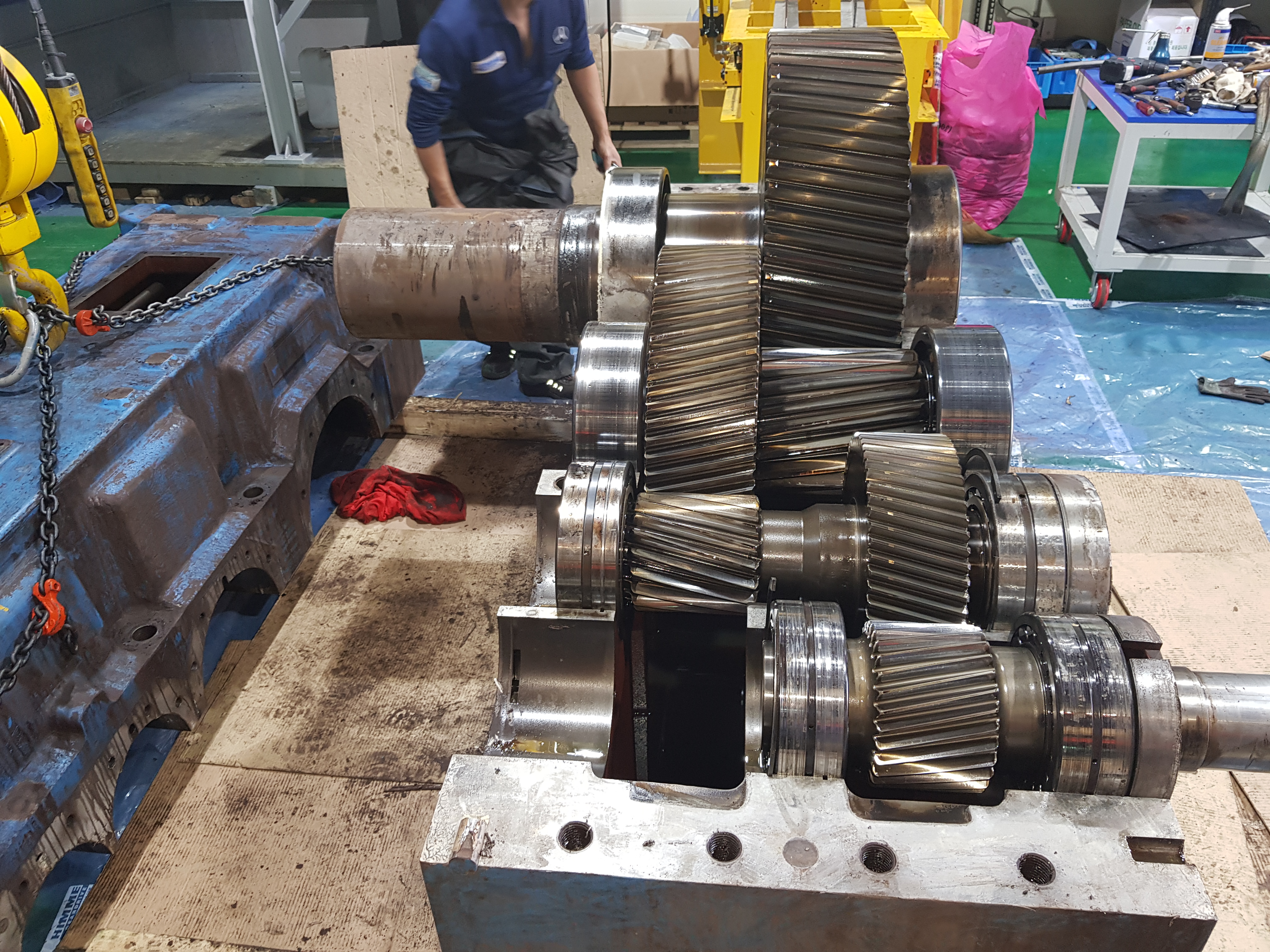

FLENDER H3SH20 Overhaul

Maker
FLENDER (Germany)

Type / Size
H3SH20

Weight
7200 kg

Rated power
780kW

Rated Torque
345,000 Nm

Gearbox design

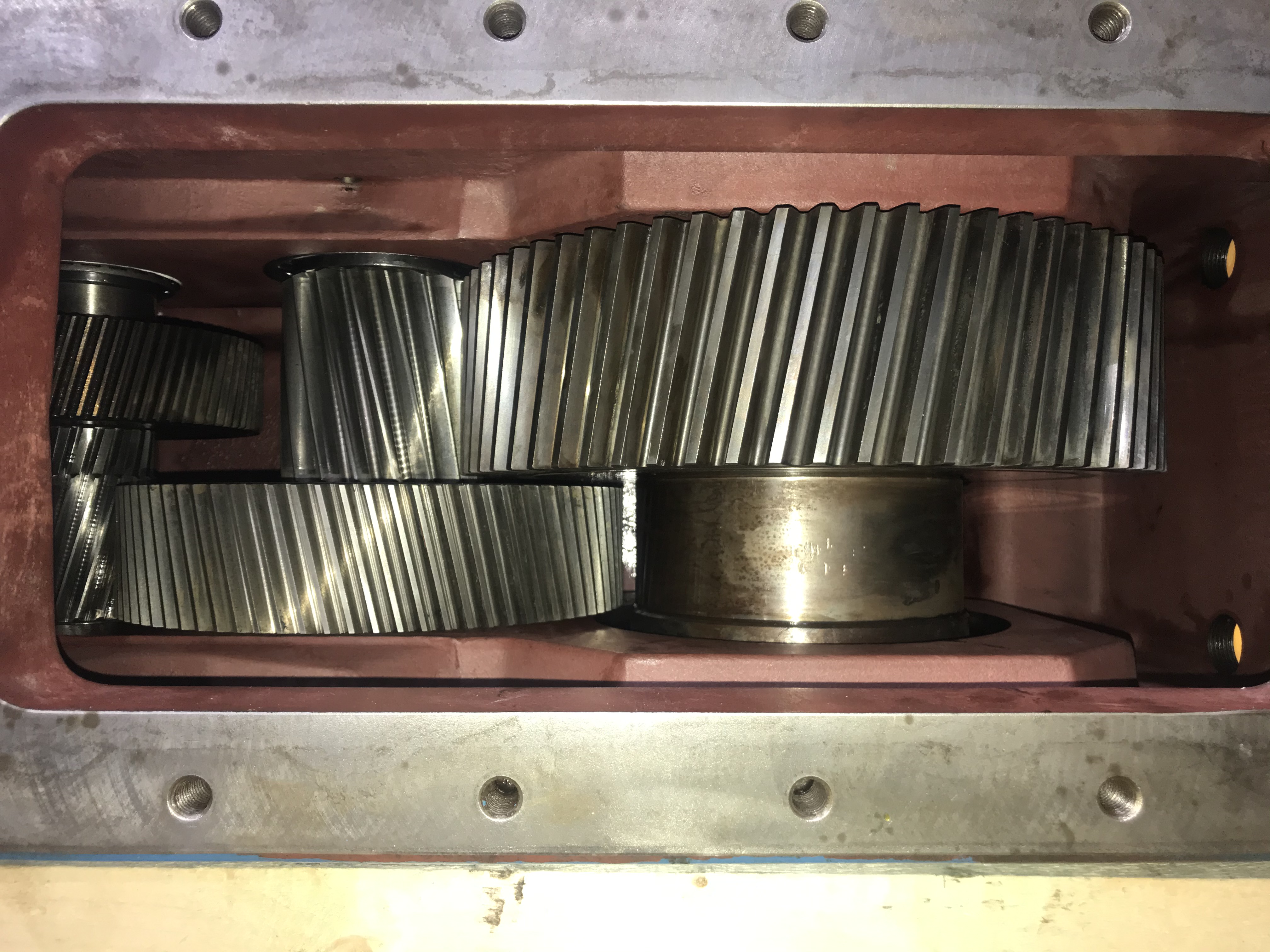

Helical gear unit 3stages

Key features
- Replace Bearing / Shaft seal
- Replace 1st Pinion shaft and gear wheel
- Replace Taconite shaft seal
- Filling with Oil
- Post-repair test
- Repairs to paint finish

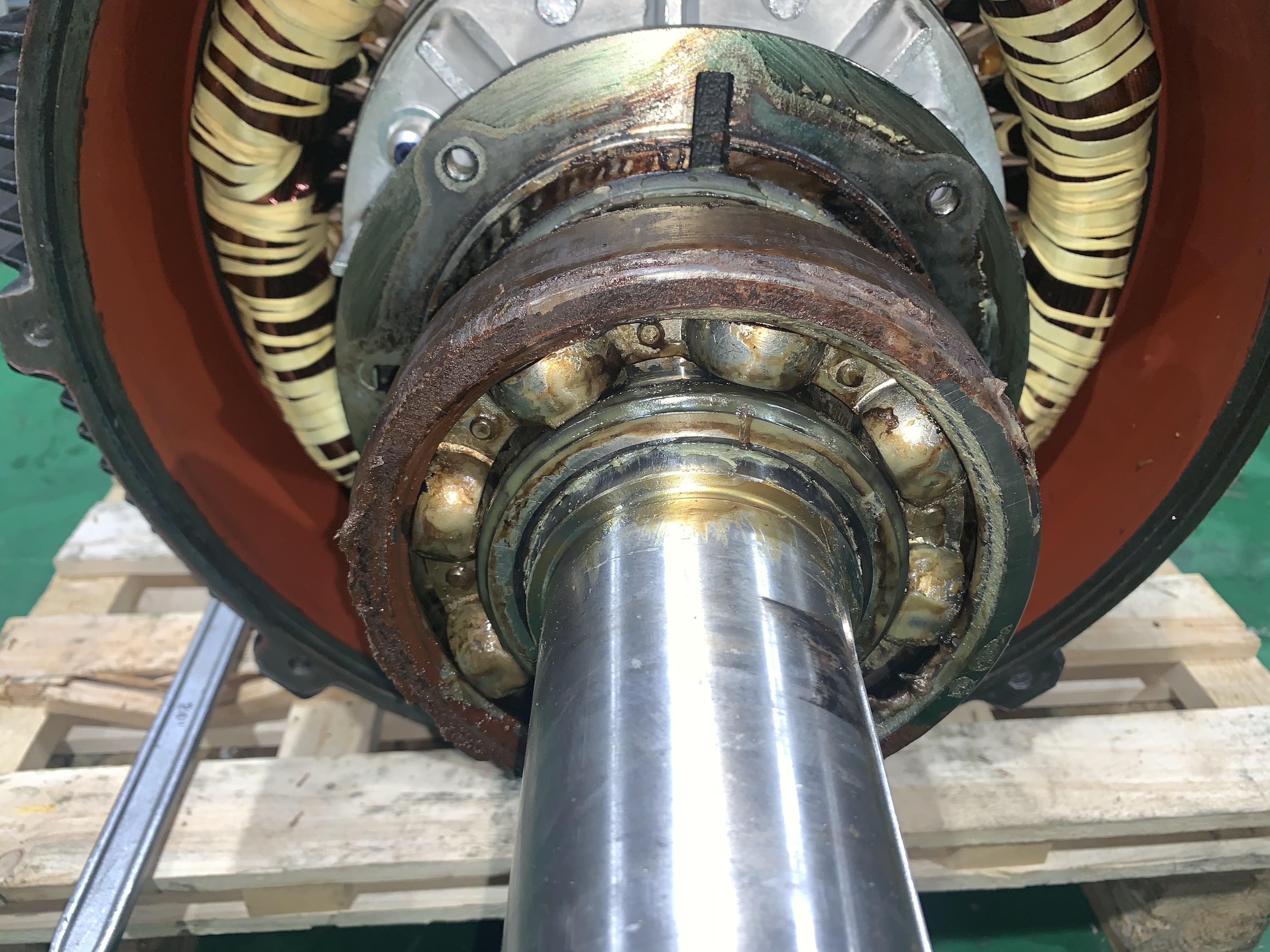

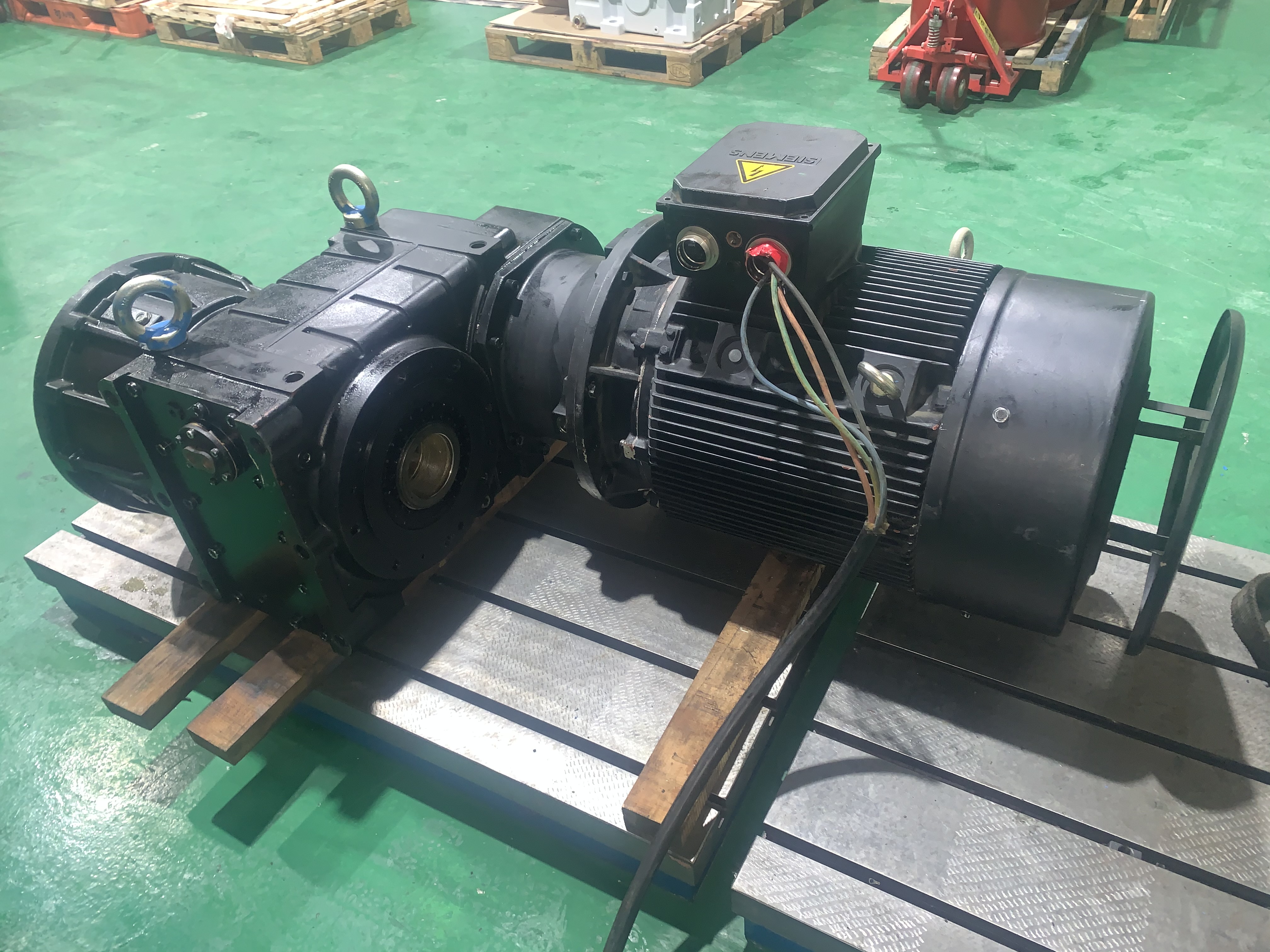

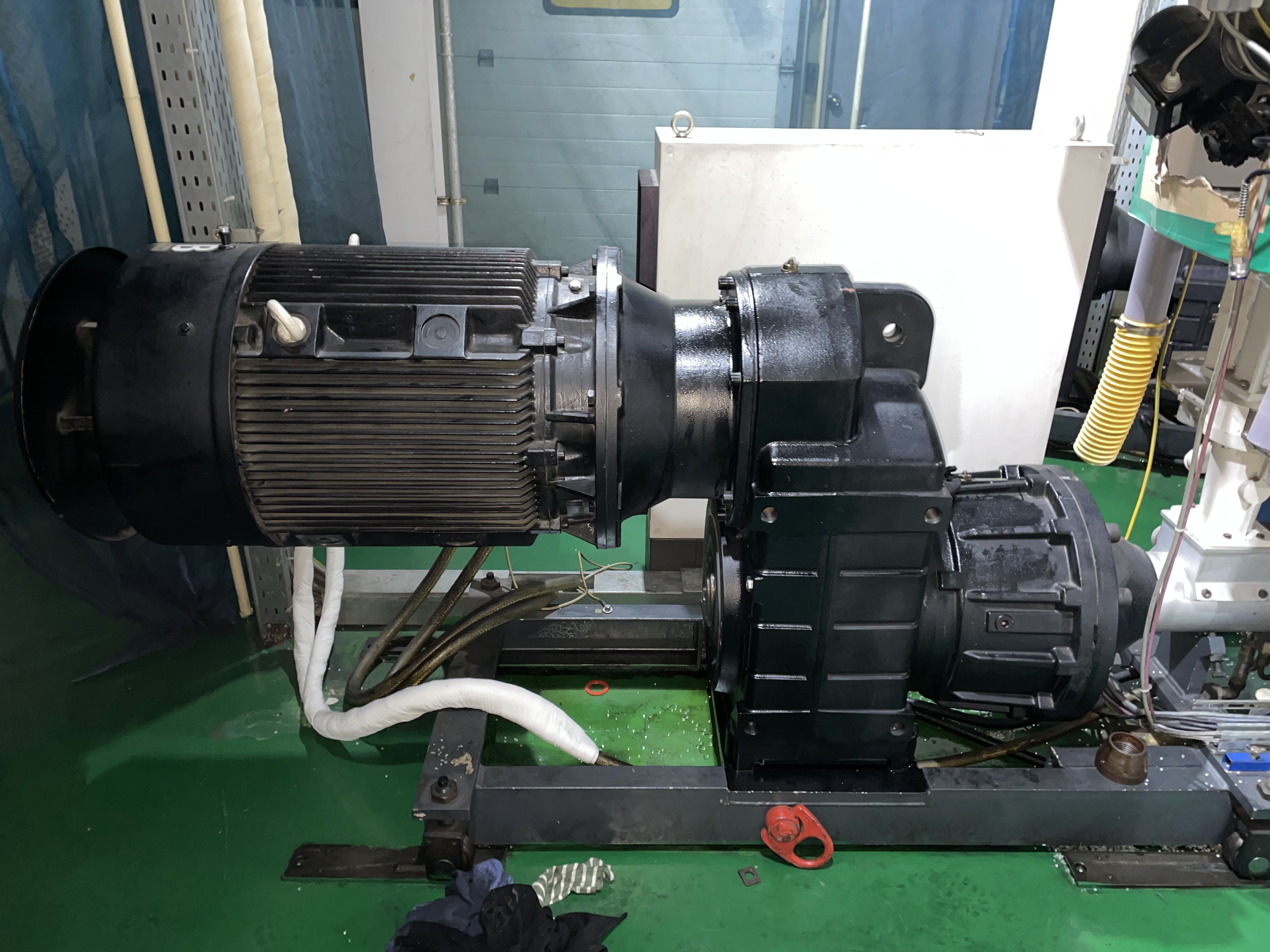

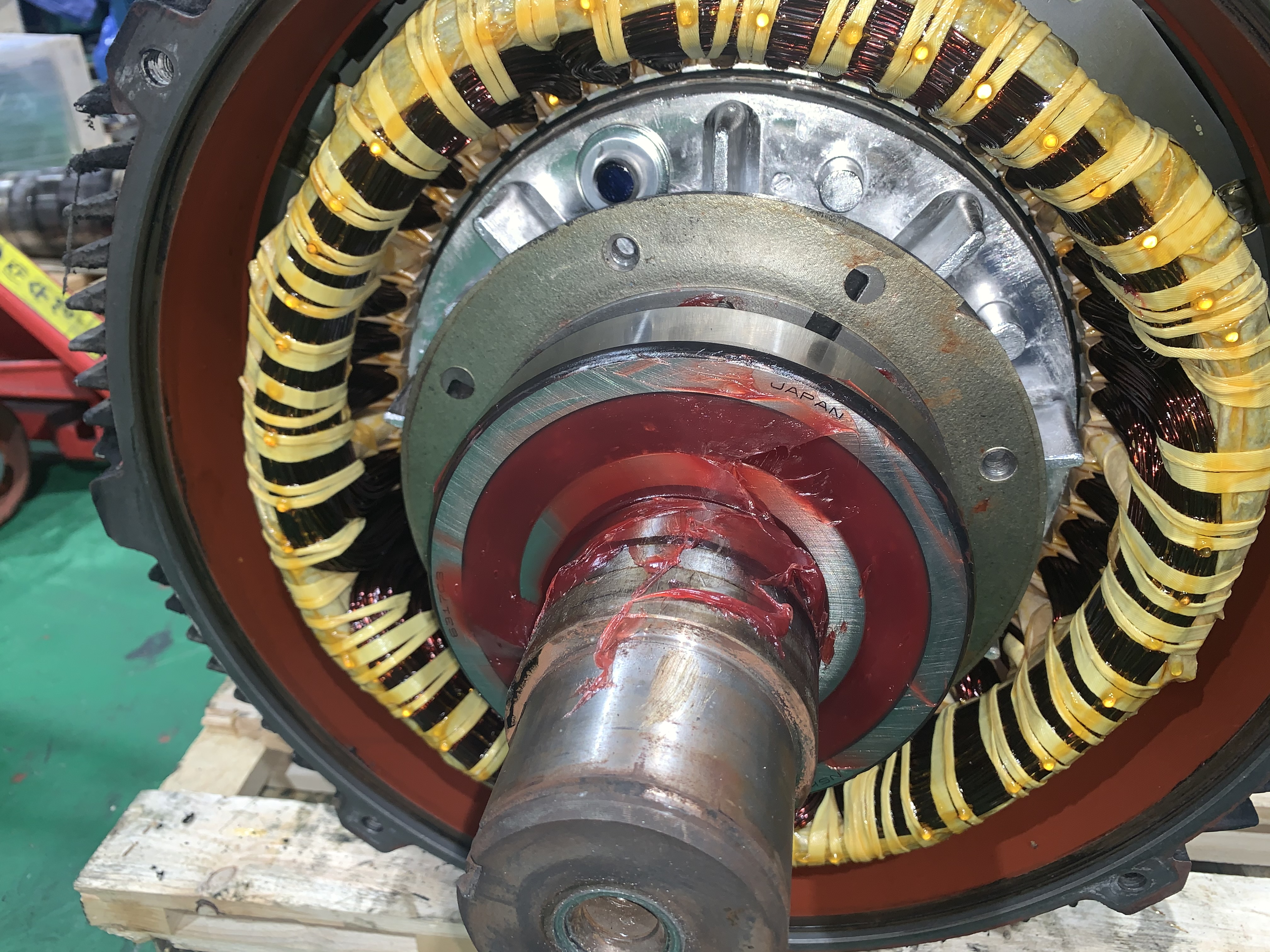

SIEMENS MOTOR OVERHAUL

Maker
SIEMENS (Germany)

Type / Size
FZAE168B-K4-LGI280S4EW (SIEMENS MOTOR FOR EXTRUDER)
1LG6280-4MA94-Z (SIEMENS 75/112kW, 230/400V, 1485/2595rpm)

Weight
1120 kg

Rated power
75kW

Rated Torque
9738 Nm

Gearbox design
Extruder drive parallel shaft mounted geared motor

Key features
- Replace Bearing / Shaft seal

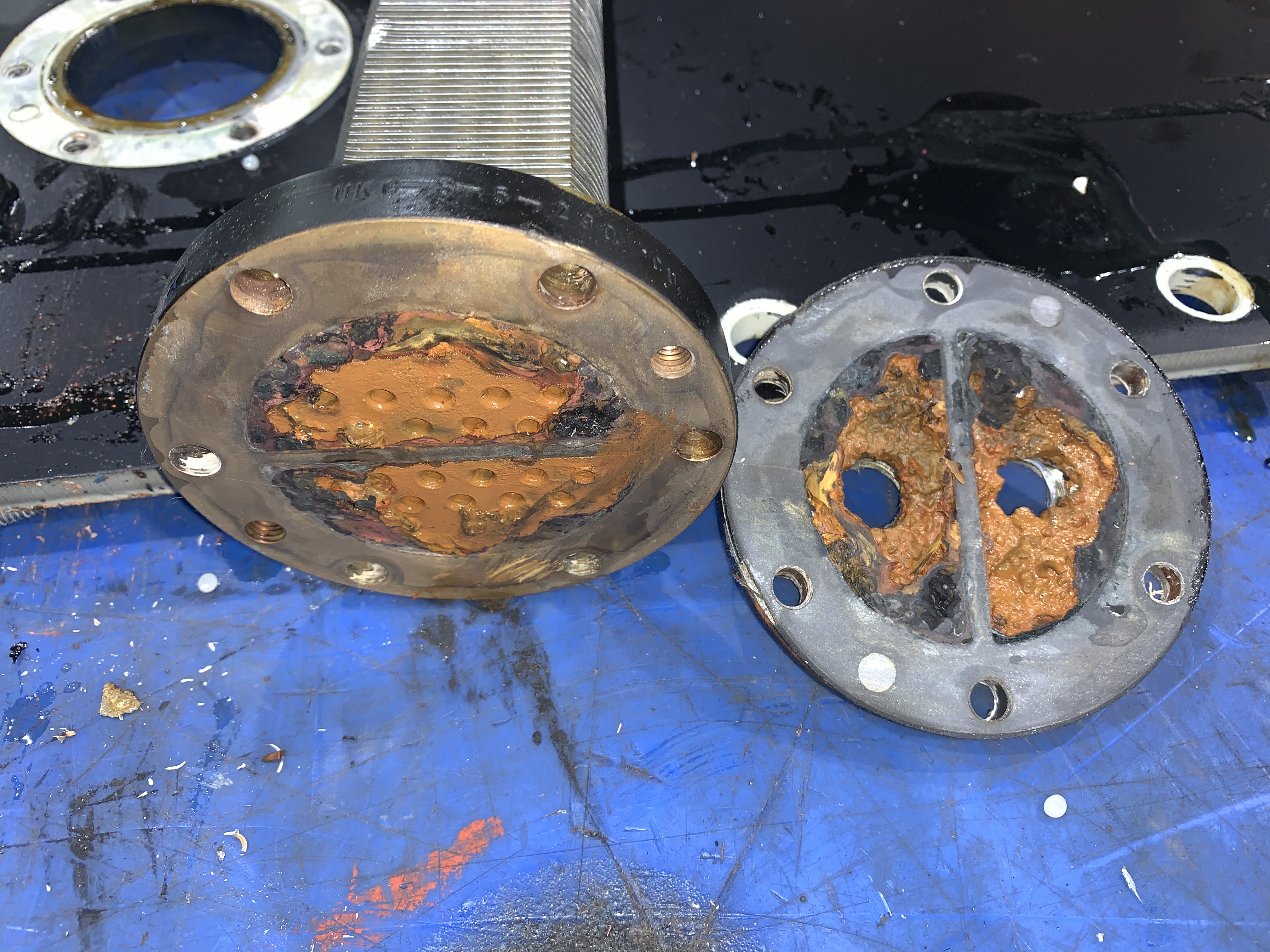

- Cleaning cooling water coil
- Filling with Oil
- Post-repair test
- Repairs to paint finish

SIEMENS MOTOR ZF188-K4-225 Overhaul

Maker
SIEMENS (Germany)

Type / Size
ZF188-K4-225

Weight
850 kg

Rated power
55kW

Rated Torque
10735 Nm

Gearbox design
Helical gear unit for Agitator drive

Key features
- Replace Bearing / Shaft seal
- Replace 1st Pinion shaft and gear wheel
- Replace input adapter shaft
- Filling with Oil
- Post-repair test
- Repairs to paint finish

FLENDER B4DH07 OVERHAUL

Maker
FLENDER (Germany)

Type / Size
B4DH07

Weight
600 kg

Rated power
22kW

Rated Torque
21700 Nm

Gearbox design
Bevel helical gear box with Shrink disc

Key features
- Replace Bearing / Shaft seal

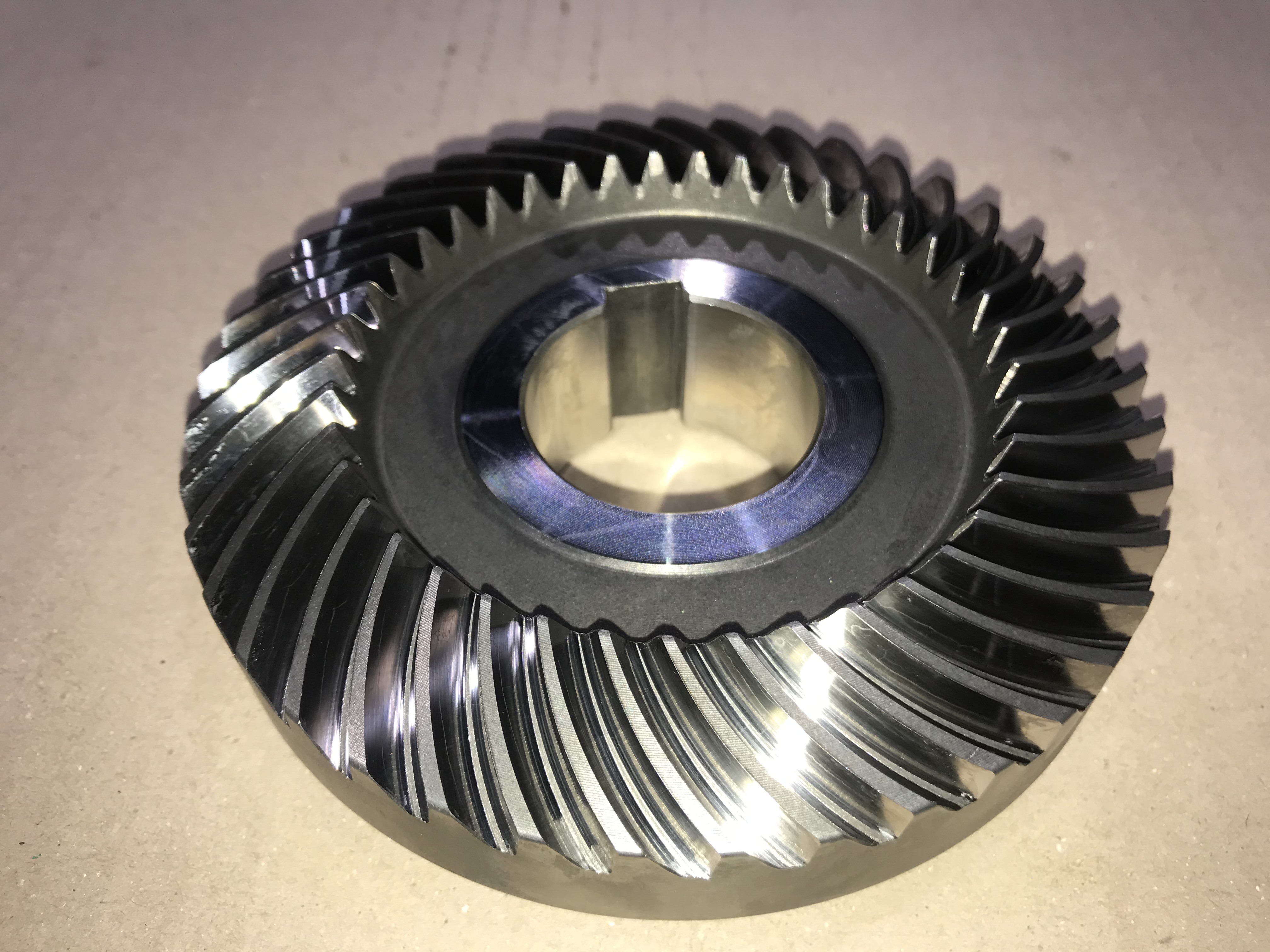

- Replace Input Bevel gear set
- Replace output hollow shaft
- Cleaning cooling water coil
- Filling with Oil
- Post-repair test
- Repairs to paint finish
