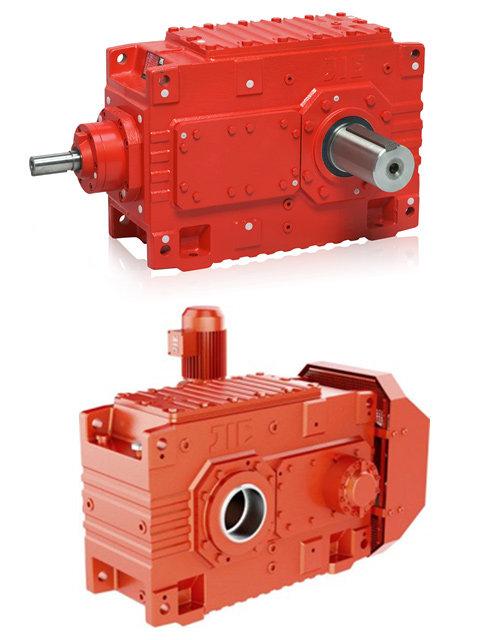

• JRHH Series Parallel Shaft Gear Units

  PRODUCT HIGHLIGHT

  Model

  3 ~ 28

  Rato

  1.25 ~ 450

  Input power

  4.3 ~ 10,515 kw

  Output torque

  2,300 ~ 1,400,000 N.m

  Technical design

  The gearing is designed according to DIN 3990/3991.

  It is possible to calculate according to ISO 6336, ISO 10.300, AGMA 2003.

  The shafts are calculated in accordance with DIN 743.

  Roller bearings are designed in accordance with ISO 281.

  The standard material for housings is lamellar graphite cast iron, which, at a minimum, satisfies the properties of EN-GJL-200.

  Upon request, welded versions can also be made available.



  Design of the Output shaft

  Solid shaft with parallel key

  Hollow shaft with keyway

  Hollow shaft with shrink disk

  Hollow shaft with involute splines acc.to DIN5480

  Flanged shaft

  DOWNLOAD CATALOG REQUEST

•

  품질보증 기간 3년

• JRHB Series Helical-Bevel Gear Units

  PRODUCT HIGHLIGHT

  Model

  4 ~ 28

  Rato

  5 ~ 400

  Input power

  2.8 ~ 4,908 kw

  Output torque

  5,500 ~ 1,400,000 N.m

  Technical design

  The gearing is designed according to DIN 3990/3991.

  It is possible to calculate according to ISO 6336, ISO 10.300, AGMA 2003.

  The shafts are calculated in accordance with DIN 743.

  Roller bearings are designed in accordance with ISO 281.

  The standard material for housings is lamellar graphite cast iron, which, at a minimum, satisfies the properties of EN-GJL-200.

  Upon request, welded versions can also be made available.



  Design of the Output shaft

  Solid shaft with parallel key

  Hollow shaft with keyway

  Hollow shaft with shrink disk

  Hollow shaft with involute splines acc.to DIN5480

  Flanged shaft

  DOWNLOAD CATALOG REQUEST

•

  품질보증 기간 3년

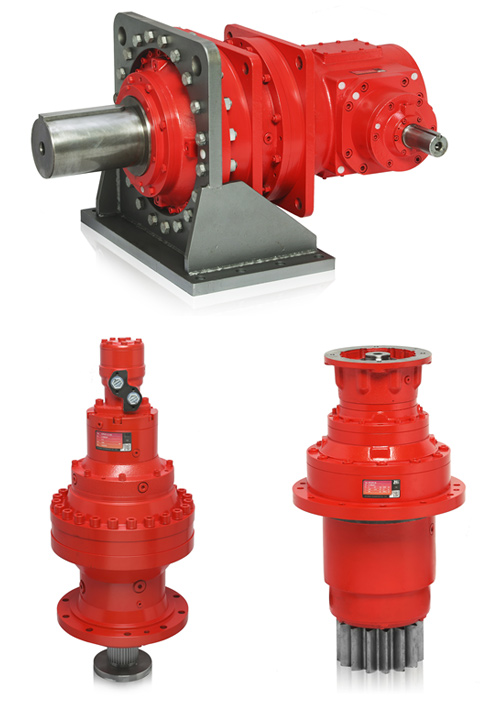

• JRP Series Plannetary Gear Units

  PRODUCT HIGHLIGHT

  Model

  9 ~ 36

  Rato

  25 ~ 450

  Input power

  0.4 ~ 12,939 kw

  Output torque

  2,600,000 N.m

  Technical design

  The housing parts are constructed from high-quality casting

  The sun pinion and planet gears have straight teeth, are case hardened, and ground. Internal gears are highly tempered and pounded.

  The gear teeth are designed to be Strong durability for the specified nominal torques in accordance with ISO 6336.



  Design of the Output shaft

  Hollow shaft output with locking plate

  Solid shaft output with flat key

  Hollow shaft output with involute spline

  Solid shaft output with involute spline

  DOWNLOAD CATALOG REQUEST
