HIMMEL Geared motors

H > Products

HIMMEL Antriebstechnik GmbH & Co. KG는 모터 생산, 기어 제조 및 자동화 분야의 전문가입니다.

최대 50kW의 플랫 모터와 최대 28,000Nm 범위의 토크를 가진 기어는 탁월한 성능을 입증합니다.
DIN EN ISO 9001 인증을 받은 회사로서 전자 및 제어 기술 분야의 전문 지식을 통해 제어 시스템을 위한 가장 경제적인 솔루션을 개발하고 제조 할 수 있습니다.

HIMMEL Antriebstechnik GmbH & Co. KG

Venneweg 28, 48712 Gescher, Germany

Tel.: +49 (0) 2542 910 0

WebSite : www.himmelinfo.de

DOWNLOAD CATALOG REQUEST

HIMMEL Helical Geared motor

Technical information

Gear unit type
E.20 ~ E.140 (1-stage)
Z.10 ~ Z.181 (2-stage)
D.30 ~ D.181 (3-stage)

Gear unit size
7 sizes (1-stage)
10 sizes (2-stage)
9 sizes (3-stage)

Rated torque
50 ~ 15,000 Nm

Gear unit ratio
1.7 ~ 9,435

Mounting design
Foot- mounted / Flange –mounted

Special design
Input adapter for IEC-standard motor
Input adapter for servomotor
Piggy – back design
Agitator type

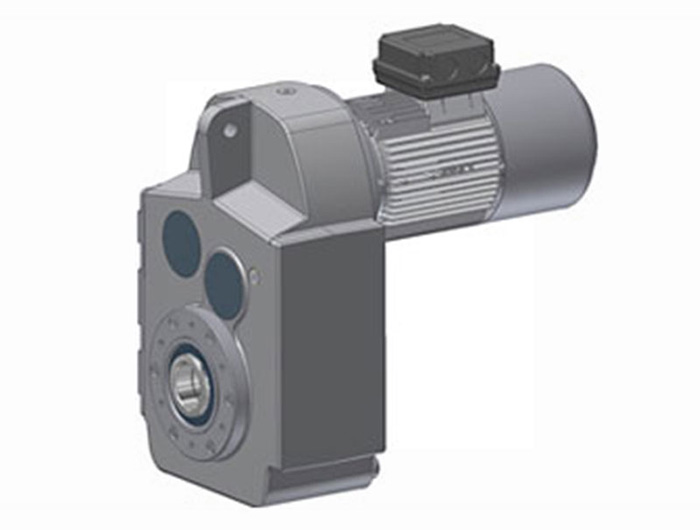

HIMMEL Parallel shaft helical Geared motor

Technical information

Gear unit type
FZ.31 ~ FZ.161 (2-stage)
FD.31 ~ FD.201 (3-stage)

Gear unit size
8 sizes (2-stage)
10 sizes (3-stage)

Rated torque
70 ~ 28,000 Nm

Gear unit ratio
3.03 ~ 28,302

Mounting design
Foot- mounted / Flange –mounted
Torque arm
Hollow shaft
Hollow shaft with shrink disk
Hollow shaft with splined shaft DIN5480

Special design
Input adapter for IEC-standard motor
Input adapter for servomotor
Piggy – back design

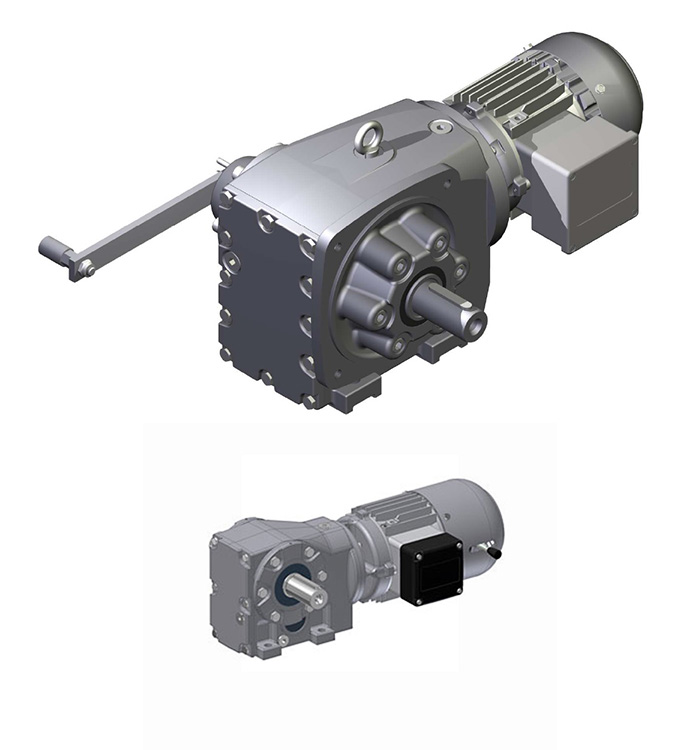

HIMMEL Helical Bevel Geared motor

Technical information

Gear unit type
K.30 ~ K.200 (3-stage)

Gear unit size
10 sizes (3-stage)

Rated torque
200 ~ 25,000 Nm

Gear unit ratio
9.09 ~ 27,184

Mounting design
Foot- mounted / Flange –mounted
Torque arm
Hollow shaft
Hollow shaft with shrink disk
Hollow shaft with splined shaft DIN5480

Special design
Input adapter for IEC-standard motor
Input adapter for servomotor
Piggy – back design
Input adapter for servomotor
Piggy – back design

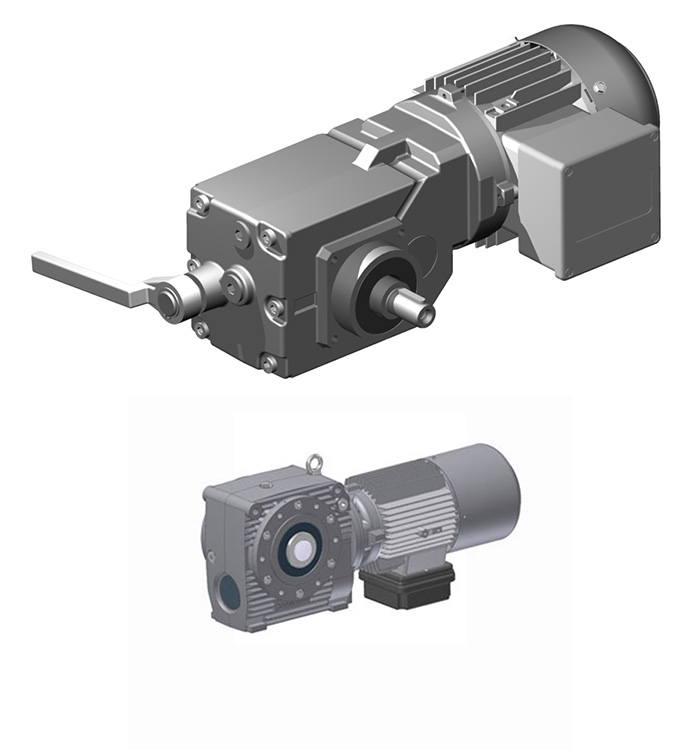

HIMMEL Helical worm Geared motor

Technical information

Gear unit type
S..01 ~ S..11 (1-stage)
C..10 ~ C..122 (2-stage)

Gear unit size
3 sizes (1-stage)
7 sizes (2-stage)

Rated torque
25 ~ 4400 Nm

Gear unit ratio
4.28 ~ 14,126

Mounting design
Foot- mounted / Flange –mounted
Torque arm
Hollow shaft
Hollow shaft with shrink disk
Hollow shaft with splined shaft DIN5480

Special design
Input adapter for IEC-standard motor
Input adapter for servomotor
Piggy – back design
