FLENDER Couplings

H > Products

FLENDER standard coupling

80 년 이상의 경험을 가진 세계 최대의 기계식 커플 링 제조업체 인 Siemens는 전 세계 거의 모든 산업 분야에서 기계 샤프트가 안전하게 연결되도록합니다.

고품질 산업용 커플 링은 많은 응용 분야에서 사용하기에 매우 적합하며, 대부분은 폭발 가능성이있는 환경에서도 사용하기에 적합합니다. 제품 범위는 10에서 10,000,000 Nm까지의 토크 범위의 커플 링을 포함합니다.

Flender GmbH Alfred-Flender-Straße 77 46395 Bocholt Germany

Website : http://flender.com

DOWNLOAD CATALOG REQUEST

The wide range at a glance

Our couplings are available in many types and sizes

BIPEX N-EUPEX RUPEX	BIPEX	N-EUPEX	N-EUPEX DS	RUPEX RWN/RWS
	Flexible couplings
	Claw coupling	Pin coupling	Pin coupling	Pin and bush coupling
Properties	Fail-safe, torsionally flexible, damping	Fail-safe, torsionally flexible, damping	W/o fail-safe device, torsionally flexible, damping	Fail-safe, torsionally flexible, damping
Nominal torque/power rating [Nm or kW]	13.5 Nm ... 3,700 Nm	19 Nm ... 62,000 Nm	19 Nm ... 21,200 Nm	200 Nm ... 1,300,000 Nm
Perm. peripheral speed [m/s]	36 m/s	36 m/s	36 m/s	40/60 m/s
Temp. at place of installation [°C]	–30 °C ... +80 °C	–50 °C ... +100 °C	–30 °C ... +80 °C	–50 °C ... +100 °C
Perm. angular misalignment [°]	0.1°	0.2°	0.2°	0.2°

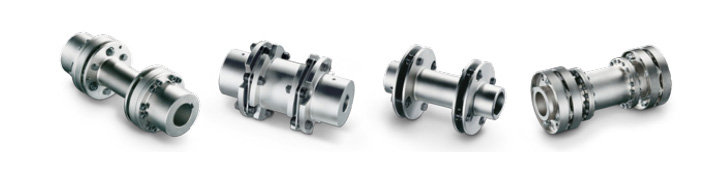

ARPEX	ARPEX ARP-6	ARPEX ARS/ARC	ARPEX ARW-4/-6	ARPEX ART-6/-8/-10
	lexible couplings
	All-steel coupling	All-steel coupling	All-steel coupling	All-steel coupling
Properties	Fail-safe, torsionally rigid, double-jointed	Fail-safe, torsionally rigid, double-jointed	Fail-safe, torsionally rigid, double-jointed	Fail-safe, torsionally rigid, double-jointed
Nominal torque/power rating [Nm or kW]	100 Nm ... 17,000 Nm	170 Nm ... 1,450,000 Nm	92 Nm ... 80,000 Nm	1,000 Nm ... 535,000 Nm
Perm. peripheral speed [m/s]	100 m/s	55/100 m/s	55 m/s	200 m/s
Temp. at place of installation [°C]	–40 °C ... +280 °C	–40 °C ... +280 °C	–40 °C ... +280 °C	–40 °C ... +280 °C
Perm. angular misalignment [°]	0.7°	0.7°/0.4°/0.3/0.2°	3°	0.35°/0.25°/0.18°

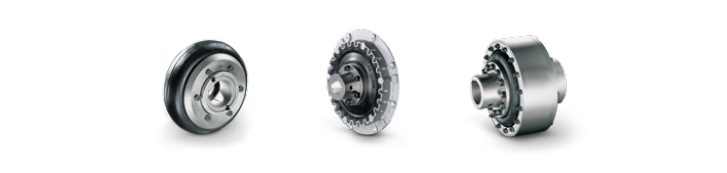

ELPEX	ELPEX B	ELPEX S	ELPEX Standard
	Highly flexible couplings
	Rubber tyre coupling	Rubber disc coupling	Ring coupling
Properties	Fail-safe, highly flexible, damping	Fail-safe, highly flexible, damping	W/o fail-safe device, highly flexible, damping
Nominal torque/power rating [Nm or kW]	24 Nm ... 14,500 Nm	330 Nm ... 63,000 Nm	1,600 Nm ... 90,000 Nm
Perm. peripheral speed [m/s]	35 m/s	66 m/s	36/60 m/s
Temp. at place of installation [°C]	–50 °C ... +70 °C	–40 °C ... +120 °C	–40 °C … +80 °C
Perm. angular misalignment [°]	4°	0.5°	0.5°

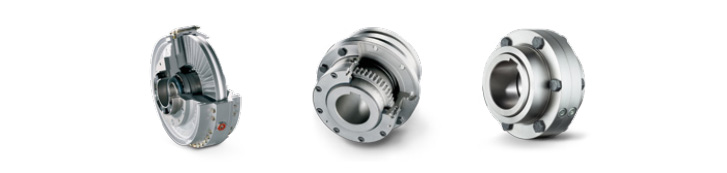

FLUDEX ZAPEX	FLUDEX	ZAPEX ZW	ZAPEX ZN
	Hydrodynamic couplings	Torsionally rigid couplings
	Fluid coupling	Gear coupling	Gear coupling
Properties	Ability to slip, hydrodynamic	Fail-safe, torsionally rigid, double-jointed	Fail-safe, torsionally rigid, double-jointed
Nominal torque/power rating [Nm or kW]	0.5 kW ... 2,500 kW	1,300 Nm ... 7,200.000 Nm	1020 ... 162,500 Nm
Perm. peripheral speed [m/s]	80 m/s	60 m/s	60 m/s
Temp. at place of installation [°C]	–40 °C ... +50 °C	–20 °C ... +80 °C	–20 °C ... +80 °C
Perm. angular misalignment [°]	0.2°	1°	0.5°
