Faster on the market and in the black
with integrated Drive Systems

SIEMENS Geared motors

SIMOGEAR geared motors from Siemens

  • SIEMENS는 드라이브 라인에 최적으로 적용할 수 있는 컴팩트하고 다목적으로 기어드모터 솔루션을 제공합니다.
    지멘스의 SIMOGEAR는 모든 일반적인 기어 유닛 유형과 다양한 제품 장점으로 기어드모터의 모든 범위에서 사용이 가능합니다.

    Get more information

    Siemens geared motors: www.siemens.com/gearedmotors

    Siemens AG

    Digital Factory Division / Motion Control / General Motion Control / Geared Motors

    Postfach 17 09

    72007 Tubingen

    Germany


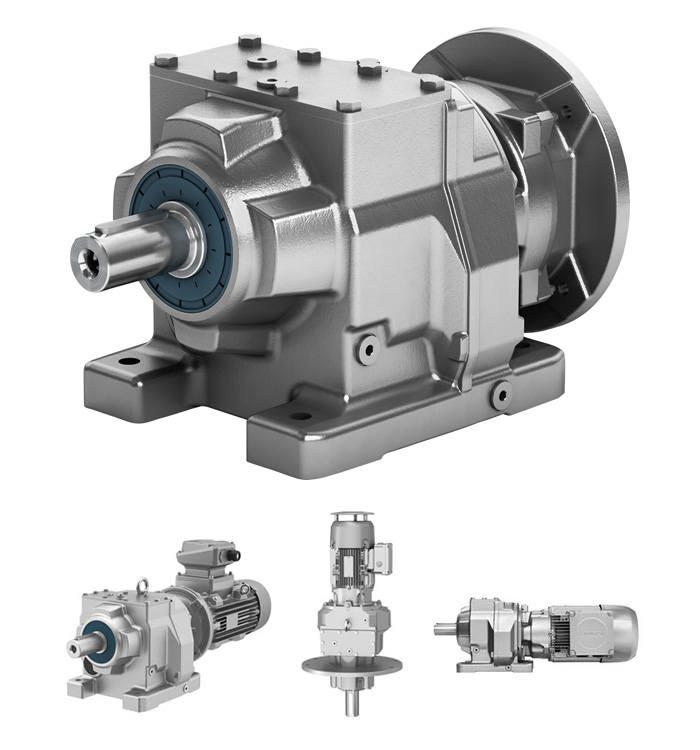

  • SIEMENS SIMOGEAR Helical-worm Geared motor

    Technical information

    Gear unit type

    E.39 ~ E.149 (1-stage)
    Z.19 ~ Z.189 (2-stage)
    D.19 ~ D.189 (3-stage)

    Gear unit size

    7 sizes (1-stage)
    13 sizes (2-stage / 3-stage)

    Rated torque

    50 ~ 19,000 Nm

    Gear unit ratio

    1.29 ~ 9.79 (1-stage)
    3.40 ~ 57 (2-stage)
    28 ~ 328 (3-stage)
    248 ~ 31,284 (multi-stage)

    Technical design

    The gearing is designed according to DIN 3990/3991.

    It is possible to calculate according to ISO 6336, ISO 10.300, AGMA 2003.

    The shafts are calculated in accordance with DIN 743.

    Roller bearings are designed in accordance with ISO 281.

    The standard material for housings is lamellar graphite cast iron, which, at a minimum, satisfies the properties of EN-GJL-200.

    Upon request, welded versions can also be made available.

    Design of the Output shaft

    Solid shaft with parallel key

    Hollow shaft with keyway

    Hollow shaft with shrink disk

    Hollow shaft with involute splines acc.to DIN5480

    Flanged shaft

    DOWNLOAD CATALOG REQUEST

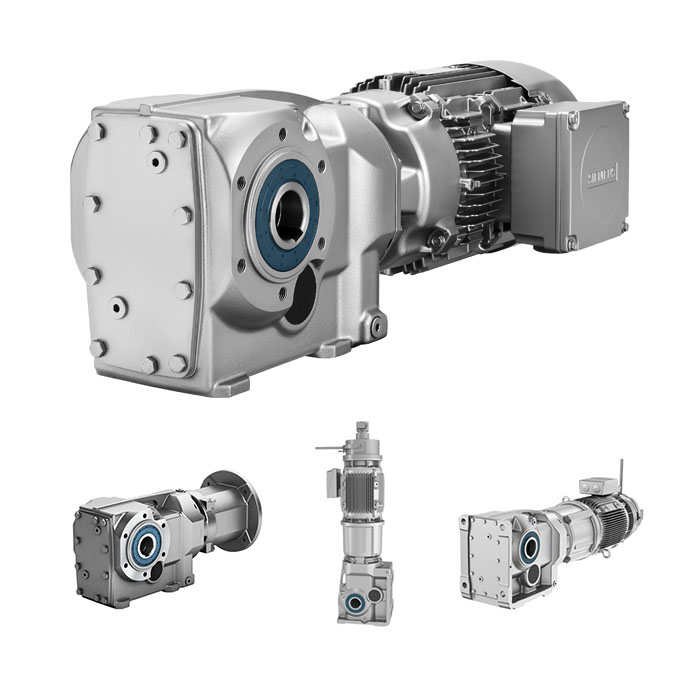

  • SIEMENS SIMOGEAR Helical-Bevel Geared motor

    Technical information

    Gear unit type

    B.19 ~ B.49 (2-stage)
    K.39 ~ K.189 (3-stage)

    Gear unit size

    4 sizes (2-stage)
    10 sizes (3-stage)

    Rated torque

    50 ~ 450 Nm (2-stage)
    220 ~ 19,500 Nm (3-stage)

    Gear unit ratio

    3.6 ~ 59 (2-stage)
    5.7 ~ 244 (3-stage)
    170 ~ 34,345 (multi-stage)

    Features

    Can be used even in narrow construction space

    High range of transmission ratios (plug-on pinion)

    Very energy efficient (efficiencies of 98 % per stage)

    High power density

    Mechanical construction

    Stages: 2 or 3

    Mounting types: foot-mounted or flange-mounted designs, housing flange, design with torque arm

    Shaft designs: solid shaft, hollow shaft, hollow shaft with splined shaft, hollow shaft with shrink disk, SIMOLOC assembly system

    Typical applications

    Baggage conveyor

    Transport of packaged goods

    Rope lifter (warehouse logistic)

    Carriage drives

    Mixers

    DOWNLOAD CATALOG REQUEST

  • SIEMENS SIMOGEAR Helical-worm Geared motor

    Technical information

    Gear unit type

    E.39 ~ E.149 (1-stage)
    Z.19 ~ Z.189 (2-stage)
    D.19 ~ D.189 (3-stage)

    Gear unit size

    7 sizes (1-stage)
    13 sizes (2-stage / 3-stage)

    Rated torque

    50 ~ 19,000 Nm

    Gear unit ratio

    1.29 ~ 9.79 (1-stage)
    3.40 ~ 57 (2-stage)
    28 ~ 328 (3-stage)
    248 ~ 31,284 (multi-stage)

    Technical design

    The gearing is designed according to DIN 3990/3991.

    It is possible to calculate according to ISO 6336, ISO 10.300, AGMA 2003.

    The shafts are calculated in accordance with DIN 743.

    Roller bearings are designed in accordance with ISO 281.

    The standard material for housings is lamellar graphite cast iron, which, at a minimum, satisfies the properties of EN-GJL-200.

    Upon request, welded versions can also be made available.

    Design of the Output shaft

    Solid shaft with parallel key

    Hollow shaft with keyway

    Hollow shaft with shrink disk

    Hollow shaft with involute splines acc.to DIN5480

    Flanged shaft

    DOWNLOAD CATALOG REQUEST

  • SIEMENS SIMOGEAR Helical-worm Geared motor

    Technical information

    Gear unit type

    S.09 ~ S.29 (1-stage)
    C.29 ~ C.89 (2-stage)

    Gear unit size

    3 sizes (1-stage)
    5 sizes (2-stage)

    Rated torque

    33 ~ 116 Nm (1-stage)
    110 ~ 1,450 Nm (2-stage)

    Gear unit ratio

    5 ~ 100 (1-stage)
    6.5 ~ 363 (2-stage)
    271 ~ 23,706 (multi-stage)

    Features

    Can be used even in narrow construction space

    High range of transmission ratios (plug-on pinion) High power density

    Mechanical construction

    Stages: 1 or 2

    Mounting types: foot-mounted or flange-mounted designs, housing flange, design with torque arm

    Shaft designs: solid shaft, hollow shaft, hollow shaft with splined shaft, hollow shaft with shrink disk, SIMOLOC assembly system

    Design of the Output shaft

    Sewage technology

    Stage technology

    DOWNLOAD CATALOG REQUEST
