HIMMEL® conveyor drum motors serve to drive stationary or transportable band conveyors for the transport of bulk goods of several kinds; they can also be used in transport systems without belts.

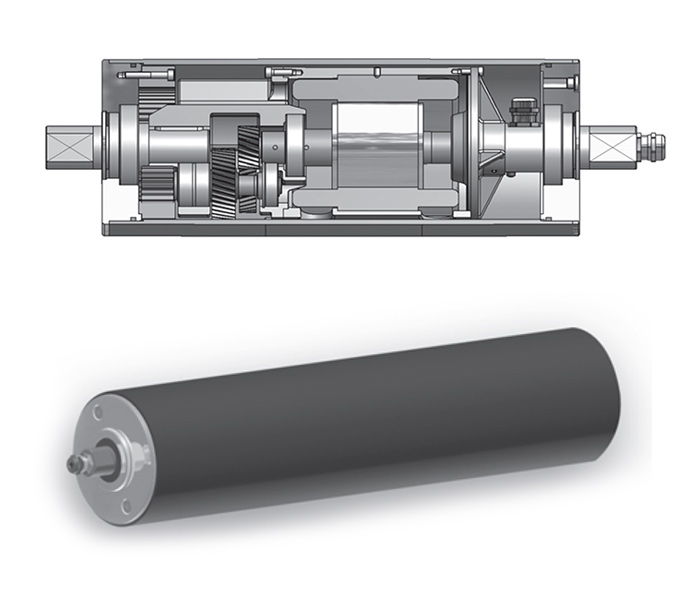

The electromotor and the reduction gear are situated in the drum– jacket and are enclosed units which are almost totally protected against outside influences.
HIMMEL® - conveyor drum motors are built as totally enclosed dust – proof and hose-proof models according to protecting system IP65 or higher depending to DIN EN 60034-5 (IEC 60034-5).
Therefore they are appropriate for outdoor use and in dusty or wet rooms.
LAT Maschinen- und Antriebstechnik GmbH & Co. KG
Venneweg 28, 48712 Gescher, Deutschland
Telefon: +49 (0) 2542 910 0
Website : www.himmelinfo.de
Compact construction
Protection class IP54
Labyrinth seal on drive-and fan side
Self-cooling with an integral fan
Frequency converter operation possible (please state)
Voltage is freely selectable
Reinforced bearing possible
Electro-mechanical brake
Winding protection PTC or PTO (WT)
Shaft ending in special design possible for customer request
Protection class IP66 possible
HSK as soon as rapid clamping system possible
Collet chuck, clamping nut and mounting tools are available on request
Speed transmitter on request
Rotary feed through for fluid on request
Stainless steel shaft on request
Adjustment of the flange disc as soon as the tool holder possible for custom-made
Air purge connection possible
Dust protection according ATEX area 22
Stationary heating installation
Increased Weatherproof protection
